Product Overview
YTR206AE delivers 1800 mm of diameter, 51/64 m of depth and 206 kN·m of torque — the numbers a contractor checks first when tender documents name a bore size; the 160 kW power pack is matched to winch and crowd loads.
51/64
Key Dimension
206
Power / Torque
7.5~30
Performance Metric
Performance Feature
Drills 1800 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
206 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 51/64 m lets the rig finish a full section between rod changes.
Technical Parameters
| Max Drilling Diameter (mm) | 1800 |
|---|---|
| Max Drilling Depth (m) | 51/64 |
| Max Output Torque (kN·m) | 206 |
| Rotation Speed (r/min) | 7.5~30 |
| Power (kW) | 160 |
| Hoisting Capacity (kN) | 200 |
| Max Speed (m/min) | 75 |
| Wire Rope Diameter (mm) | 28 |
| Power (kW) | 160 |
| Hoisting Capacity (kN) | 53 |
| Max Speed (m/min) | 40 |
| Wire Rope Diameter (mm) | 16 |
| Forward/Backward (°) | 4/90 |
| Left/Right (°) | ±3 |
| Crowd System Crowd Force (kN) | 180 |
| Crowd System Pulling Force (kN) | 180 |
| Crowd System Stroke (mm) | 4200 |
| Total Track Length (mm) | 5480 |
| Expanded Width (mm) | 4300 |
| Retracted Width (mm) | 3200 |
| Track Width (mm) | 700 |
| Operating Height (mm) | 21233 |
| Transport Width (mm) | 3200 |
| Transport Height (mm) | 3610 (incl. crowd cylinder) |
| Transport Length (mm) | 15465 (incl. counterweight & power head) |
| Standard Drill Pipe Specification | MZφ406-5X13.5m-200B |
| Optional Mechanical Lock Rod | JSφ406-4X14m-200B |
| Optional Mechanical Lock Rod | JSΦ406-4X13.5m-200B |
| Optional Friction Rod | MZΦ406-5X14m-200B |

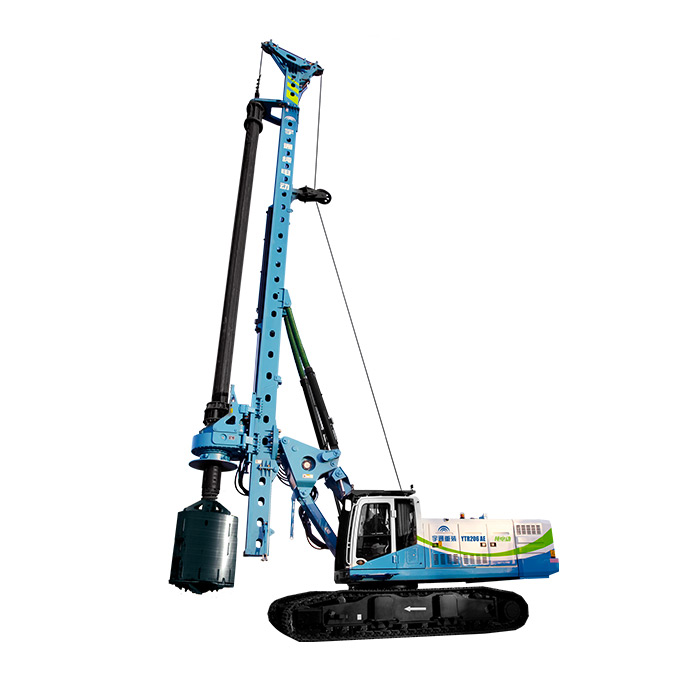

About the YTR206AE All-Electric Rotary Drilling Rig
The YTR206AE rotary drilling rig uses a fully electric driveline and is rated for the rated mm of diameter with the rated kN·m of rotary torque on the rated kW of installed power. Yutong sizes the rotary drive, crowd and winch together so the rig holds torque at depth through gravels and weathered rock rather than trading penetration for boom size.
The mast, rod handling and winch are built as a matched system: rod changes are sequenced so the crew keeps penetration on schedule, and the crowd and rotary drive are protected against stall loads in mixed ground. Load tests and torque calibration are run on every unit before it leaves the factory.
Selecting the YTR206AE comes down to bore diameter, depth and the ground profile on site. Yutong works from the tender drawings to confirm diameter, depth and torque, then matches the rig, rods and tooling to the contract, with spare parts and field support available through the global service network.
Related Products
YTR236HES Range-Extended Electric Rotary Drilling Rig
YTR236HES Range-Extended Electric Rotary Drilling Rig manufactured by Yutong Heavy Industries.
View Details

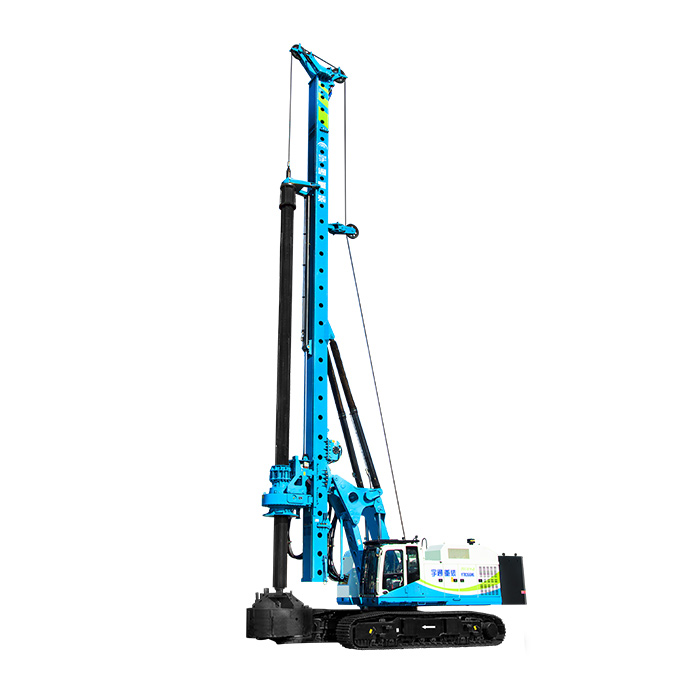

YTR266HE Range-Extended Electric Rotary Drilling Rig
