Product Overview
The YTR300Dmax cuts 2500 mm of maximum drilling diameter at up to 56/84 m depth, with 320 kN·m of rotary torque and 294 kW on the deck. It is specified where pile and diaphragm-wall work needs a machine that holds torque at depth rather than a bigger boom.
52
Key Dimension
320
Power / Torque
5～27
Performance Metric
Performance Feature
Drills 2500 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
320 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 56/84 m lets the rig finish a full section between rod changes.
294 kW of installed power is matched to winch, crowd and rotary loads so the engine never hunts on the hardest metres.
Technical Parameters
| Max Drilling Diameter (mm) | 2500 |
|---|---|
| Standard Drilling Depth (m) | 52 |
| Max Drilling Depth (m) | 56/84 |
| Model | DC13 |
| Manufacturer | Scania |
| Rated Power (kW) | 294 |
| Max Output Torque (kN·m) | 320 |
| Rotation Speed (r/min) | 5～27 |
| Gears | Four Gears |
| Max Crowd Force (kN) | 270 |
| Max Pulling Force (kN) | 280 |
| Crowd Stroke (mm) | 6000 |
| Hoisting Capacity (kN) | 330 |
| Max Lowering Speed (m/min) | 72 |
| Wire Rope Diameter (mm) | 36 |
| Placement Method | Rear-mounted |
| Hoisting Capacity (1st Layer) (kN) | 100 |
| Max Hoisting Speed (m/min) | 40 |
| Wire Rope Diameter (mm) | 20 |
| Forward Tilt Angle (°) | 3 |
| Left/Right Tilt Angle (°) | 3.5 |
| Track Shoe Width (mm) | 800 |
| Traction Force (kN) | 620 |
| Chassis Length (Wheelbase) (mm) | 5180 |
| Working Width (mm) | 4700 |
| Working Height (mm) | 23425 |
| Transport Length (mm) | 15350 |
| Transport Height (mm) | 3650 |
| Transport Width (mm) | 3400 |
| Working Weight (t) | 100 |
| Transport Weight (t) | 63 |
| Standard Drill Pipe Specification | Mechanical Lock Rod ф508-4X14.5m-200B (Drilling Depth 52m) |
| Max Length Drill Pipe Specification | Friction Rod ф508-6X17m-200B (Drilling Depth 93m) (Optional) |
| Standard Drill Pipe Transport Dimensions (mm) | 15980*700*700 |
| Max Length Drill Pipe Transport Dimensions (mm) | 18500*700*700 |

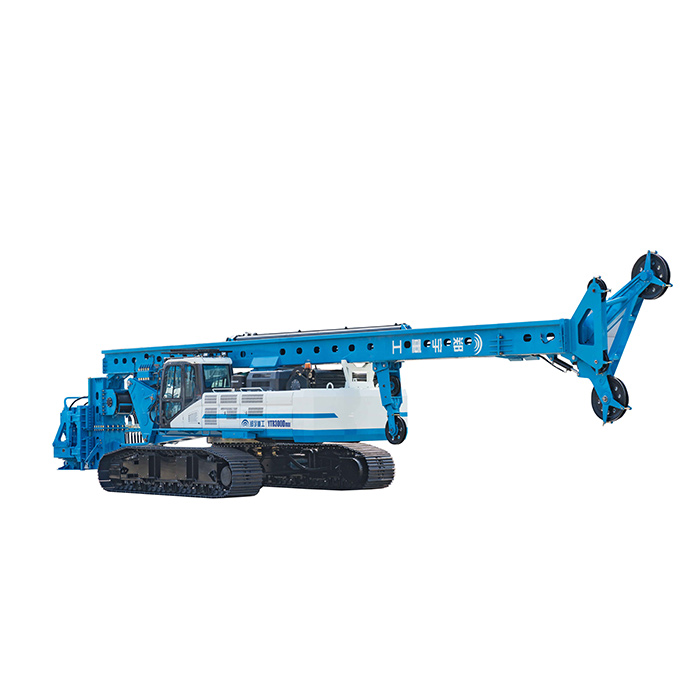

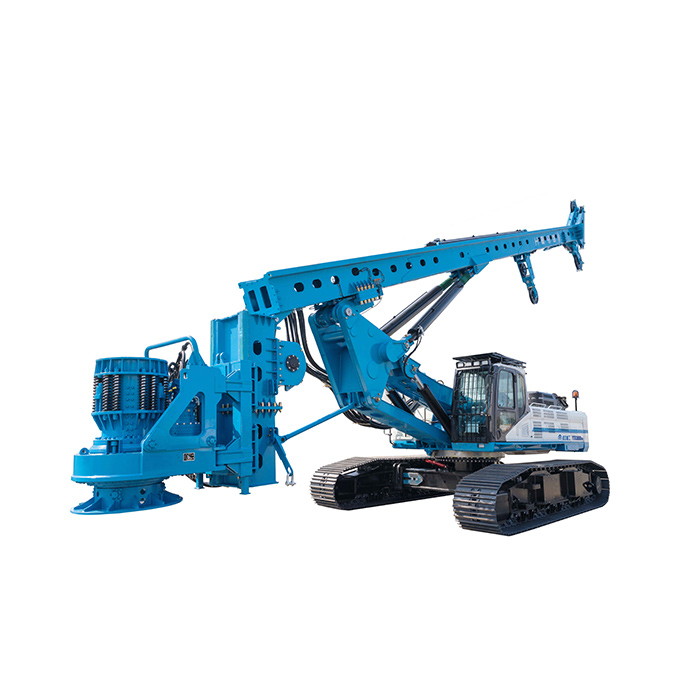

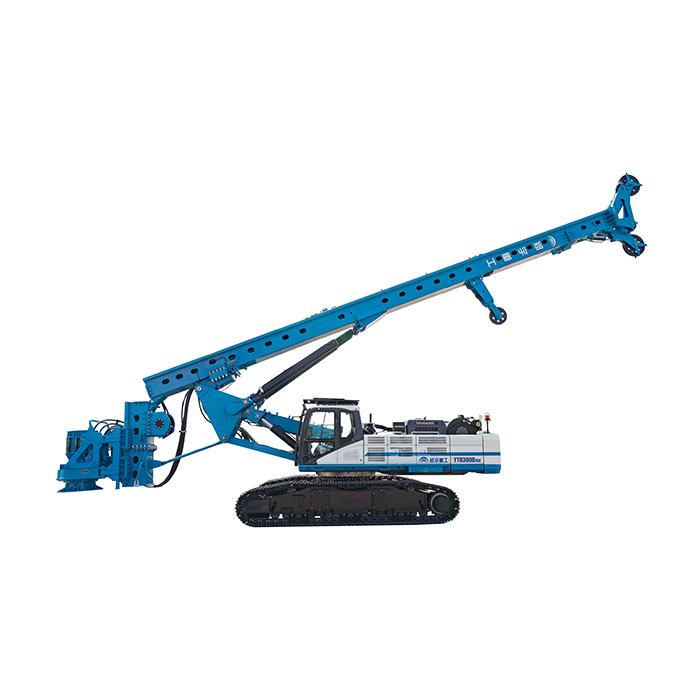

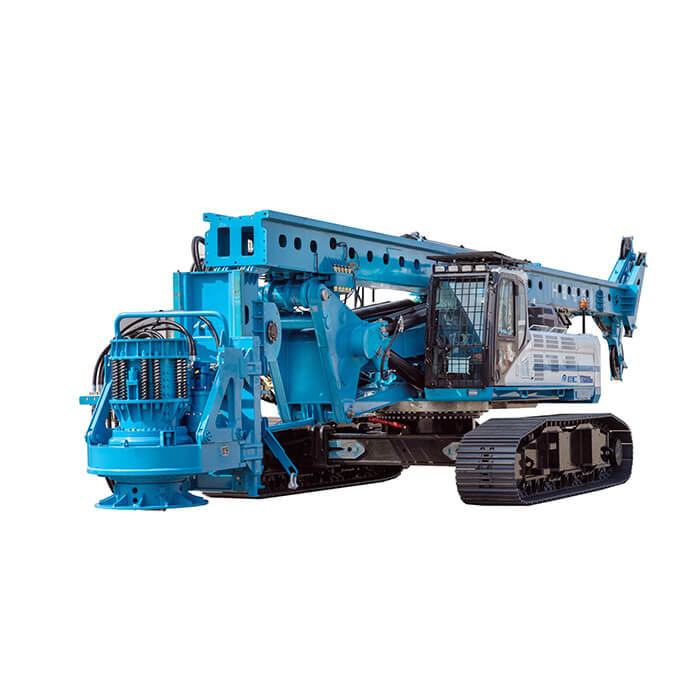

About the YTR300Dmax Rotary Drilling Rig
Yutong's YTR300Dmax is a the proven Yutong driveline rig engineered around the rated mm of diameter and the rated kN·m of torque, with the rated kW driving winch, crowd and rotary — the numbers a piling contractor compares against the soil report before mobilising.
The rig is factory-tested at rated torque and depth: mast deflection, rotary drive temperature and winch hold are checked against the spec, and the rod-handling sequence is validated so the crew keeps cycle times predictable on site.
Choosing the YTR300Dmax starts with the pile and diaphragm-wall programme: Yutong sizes diameter, depth and torque from the drawings, then supports the rig with spare parts, operator training and field service across export markets.
