Product Overview
The YTR166AE cuts 1500 mm of maximum drilling diameter at up to 44/56 m depth, with 166 kN·m of rotary torque and 95 kW on the deck. It is specified where pile and diaphragm-wall work needs a machine that holds torque at depth rather than a bigger boom.
44/56
Key Dimension
166
Power / Torque
6-30
Performance Metric
Performance Feature
Drills 1500 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
166 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 44/56 m lets the rig finish a full section between rod changes.
Technical Parameters
| Max Drilling Diameter (mm) | 1500 |
|---|---|
| Max Drilling Depth (m) | 44/56 |
| Max Output Torque (kN·m) | 166 |
| Rotation Speed (r/min) | 6-30 |
| Power (kW) | 95 |
| Crowd Force (kN) | 160 |
| Pulling Force (kN) | 180 |
| Stroke (mm) | 4500 |
| Hoisting Capacity (kN) | 170 |
| Max Speed (m/min) | 80 |
| Wire Rope Diameter (mm) | 26 |
| Power (kW) | 95 |
| Hoisting Capacity (kN) | 40 |
| Max Speed (m/min) | 35 |
| Wire Rope Diameter (mm) | 14 |
| Forward/Backward (°) | 5/90 |
| Left/Right (°) | ±3 |
| Total Track Length (mm) | 4911 |
| Expanded Width (mm) | 4100 |
| Retracted Width (mm) | 3200 |
| Track Width (mm) | 700 |
| Overall Height (mm) | 18872 |
| Operating Weight (t) | 49 |
| Transport Width (mm) | 3200 |
| Transport Height (mm) | 3730 |
| Standard Drill Pipe | MZφ377-4X12m-200B |
| Max Length Drill Pipe | JSφ377-4X12m-200B (Optional) |

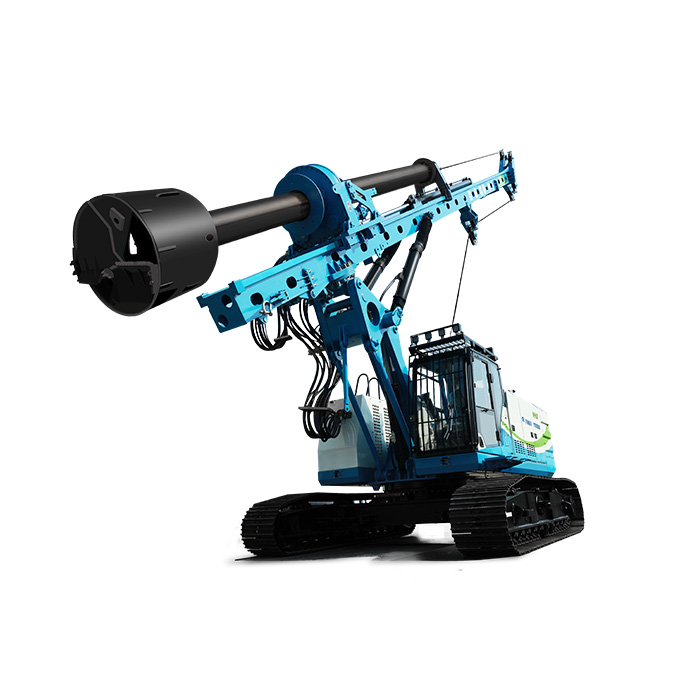

About the YTR166AE Pure Electric Rotary Drilling Rig
Yutong's YTR166AE is a fully electric driveline rig engineered around the rated mm of diameter and the rated kN·m of torque, with the rated kW driving winch, crowd and rotary — the numbers a piling contractor compares against the soil report before mobilising.
The rig is factory-tested at rated torque and depth: mast deflection, rotary drive temperature and winch hold are checked against the spec, and the rod-handling sequence is validated so the crew keeps cycle times predictable on site.
Choosing the YTR166AE starts with the pile and diaphragm-wall programme: Yutong sizes diameter, depth and torque from the drawings, then supports the rig with spare parts, operator training and field service across export markets.
