Product Overview
The YTR360Dpro cuts 2500 mm of maximum drilling diameter at up to 90/100 (Optional) m depth, with 380 kN·m of rotary torque and 331 kW on the deck. It is specified where pile and diaphragm-wall work needs a machine that holds torque at depth rather than a bigger boom.
60
Key Dimension
331
Power / Torque
5～23
Performance Metric
Performance Feature
Drills 2500 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
380 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 90/100 (Optional) m lets the rig finish a full section between rod changes.
331 kW of installed power is matched to winch, crowd and rotary loads so the engine never hunts on the hardest metres.
Technical Parameters
| Max Drilling Diameter (mm) | 2500 |
|---|---|
| Standard Drilling Depth (m) | 60 |
| Max Drilling Depth (m) | 90/100 (Optional) |
| Model | DC13 076A |
| Manufacturer | Scania |
| Engine Rated Power (kW) | 331 |
| Max Output Torque (kN·m) | 380 |
| Rotation Speed (r/min) | 5～23 |
| Gears | Four Gears |
| Max Crowd Force (kN) | 300 |
| Max Pulling Force (kN) | 350 |
| Crowd Stroke (mm) | 6000 |
| Hoisting Capacity (kN) | 380 |
| Max Lowering Speed (m/min) | 75 |
| Wire Rope Diameter (mm) | 36 |
| Placement Method | Rear-mounted |
| Forward Tilt Angle (°) | 3 |
| Left/Right Tilt Angle (°) | 3.5 |
| Track Shoe Width (mm) | 800 |
| Traction Force (kN) | 720 |
| Wheelbase (mm) | 5550 |
| Working Width (mm) | 5000 |
| Working Height (mm) | 24790 |
| Transport Length (mm) | 16700 |
| Transport Height (mm) | 3800 |
| Transport Width (mm) | 3500 |
| Working Weight (t) | 117 |
| Transport Weight (t) | 77.5 |
| Standard Drill Pipe Specification | Mechanical Lock Rod φ530-4X16.5m-200B (Drilling Depth 60m) |
| Max Length Drill Pipe Specification | Friction Rod φ530-6X18m-200B (Drilling Depth 100m, Optional) |
| Standard Drill Pipe Transport Dimensions (mm) | 18000X860X860 |
| Max Length Drill Pipe Transport Dimensions (mm) | 19500X860X860 |

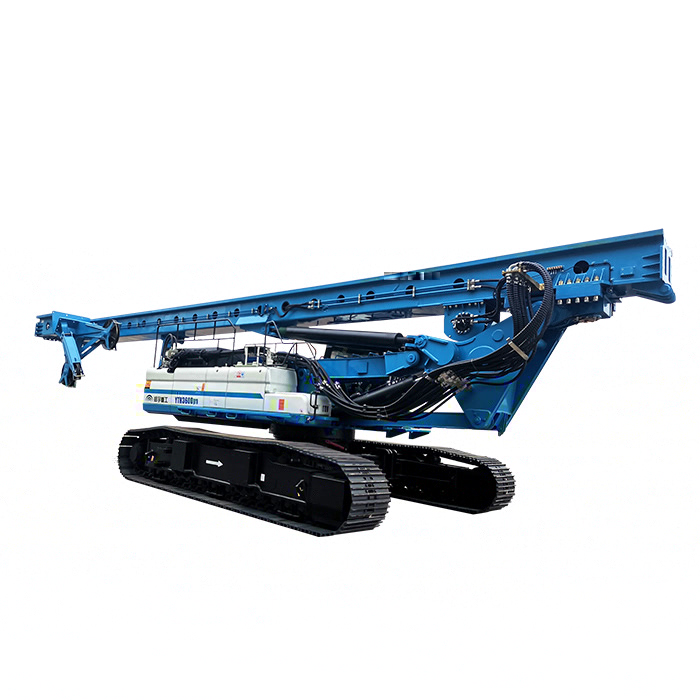

About the YTR360Dpro Rotary Drilling Rig
Yutong's YTR360Dpro is a the proven Yutong driveline rig engineered around the rated mm of diameter and the rated kN·m of torque, with the rated kW driving winch, crowd and rotary — the numbers a piling contractor compares against the soil report before mobilising.
The rig is factory-tested at rated torque and depth: mast deflection, rotary drive temperature and winch hold are checked against the spec, and the rod-handling sequence is validated so the crew keeps cycle times predictable on site.
Choosing the YTR360Dpro starts with the pile and diaphragm-wall programme: Yutong sizes diameter, depth and torque from the drawings, then supports the rig with spare parts, operator training and field service across export markets.
Related Products

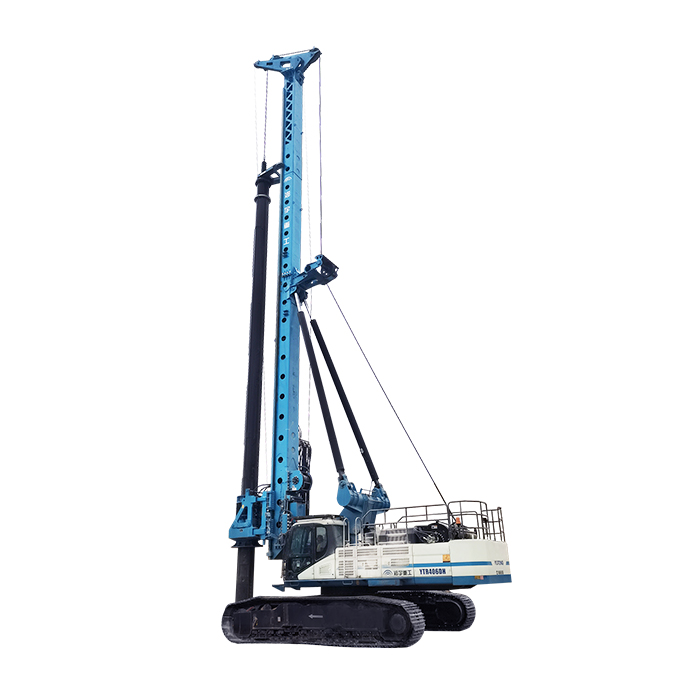

YTR406DH Rotary Drilling Rig
YTR406DH Rotary Drilling Rig manufactured by Yutong Heavy Industries.
View Details
YTR230Dpro Rotary Drilling Rig
YTR230Dpro Rotary Drilling Rig manufactured by Yutong Heavy Industries.
View Details

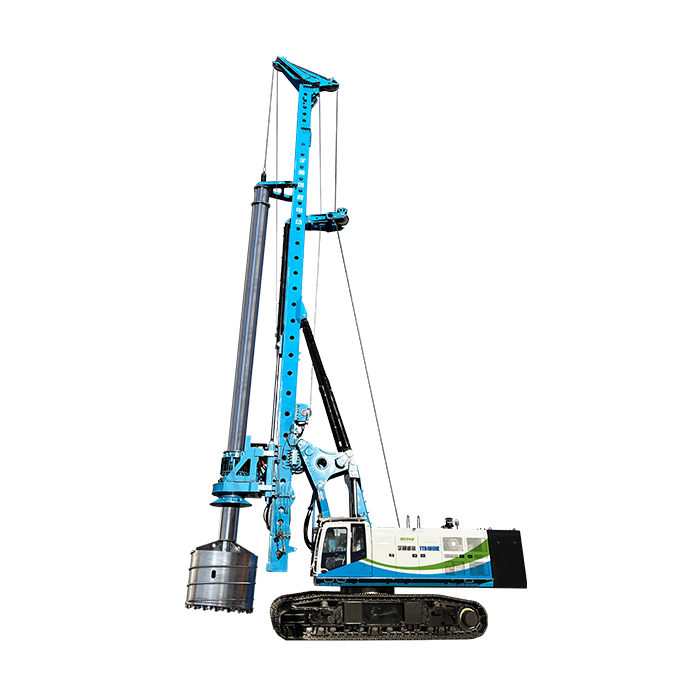

YTR406HE Range-Extended Electric Rotary Drilling Rig
YTR406HE Range-Extended Electric Rotary Drilling Rig manufactured by Yutong Heavy Industries.
View DetailsEngineering & Application Notes
On deep-pile and diaphragm-wall programmes, the YTR360Dpro works to the rated mm diameter with the rated kN·m of torque and the rated kW installed, and the power pack keeps winch and crowd capacity available at the same time as rotary drive. The rig is specified where bore depth, casing length and ground stiffness make torque-at-depth the deciding number.
Large-diameter bored piles
For large-diameter bored piles the YTR360Dpro is specified around the tooling the contract names: the rotary torque band covers the big augers and buckets, and the winch pulls the loaded bucket at the rate the cycle demands. The mast is sized for the rod string and the crowd is matched to the pile diameter, so the rig holds production on the 1.5-2.0 m class of bore that dominates deep foundation work on this site class.
Frequently Asked Questions
What is the maximum drilling depth of the YTR360Dpro Rotary Drilling Rig?
The drilling depth depends on the specific configuration and mast length selected. Yutong rotary drilling rigs are available in configurations ranging from approximately 30 meters for small urban models to over 100 meters for large deep-pile machines. Contact our engineering team for exact specifications for your project requirements.
What ground conditions can this rig handle?
Yutong rotary drilling rigs are designed to handle a wide range of strata including clay, sand, silt, gravel, and moderately weathered rock. The appropriate drilling tool (auger, bucket, core barrel, or DTH hammer) should be selected based on the specific ground conditions encountered at your site.
Is the YTR360Dpro Rotary Drilling Rig suitable for urban construction?
Yes, especially the electric and range-extended models. These produce zero local emissions and significantly lower noise levels compared to diesel rigs, making them ideal for urban core projects near residential areas, hospitals, and schools where environmental regulations are strict.
What is the lead time for delivery?
Standard models typically have a lead time of 30-60 days from order confirmation, depending on configuration and shipping destination. Customized options and special tooling may require additional time. We export to over 60 countries worldwide with reliable logistics partners.
What after-sales support does Yutong provide?
Yutong provides comprehensive after-sales support including spare parts supply, operator training, and remote technical assistance. Our global service network covers major markets, and we can dispatch engineers to project sites for commissioning and maintenance when required.
Can the rig be customized for specific project requirements?
Absolutely. Yutong offers customization options including extended masts, specialized drilling tools, cabin configurations, and telematics systems. Our engineering team works directly with customers to match the machine to specific pile diameters, depths, and ground conditions.
Does Yutong export to my country?
Yutong Heavy Industries exports construction machinery to over 60 countries across Asia, Africa, the Middle East, South America, and Eastern Europe. We have established dealer and service networks in major markets. Contact us to confirm availability in your region.
