Product Overview
The YTR236HES keeps penetration on schedule through gravels and weathered rock with 2000 mm of diameter, 54/68 m of depth and 246 kN·m of torque, backed by 180 kW of installed power matched to winch and crowd loads.
54/68
Key Dimension
246
Power / Torque
7～30
Performance Metric
Performance Feature
Drills 2000 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
246 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 54/68 m lets the rig finish a full section between rod changes.
Technical Parameters
| Max Drilling Diameter (mm) | 2000 |
|---|---|
| Max Drilling Depth (4/5 sections) (m) | 54/68 |
| Max Output Torque (kN·m) | 246 |
| Rotation Speed (rpm) | 7～30 |
| Power (kW) | 180 |
| Crowd Force (kN) | 230 |
| Pulling Force (kN) | 260 |
| Stroke (mm) | 5300 |
| Max Hoisting Capacity (kN) | 240 |
| Max Speed (m/min) | 70 |
| Wire Rope Diameter (mm) | 32 |
| Power (kW) | 180 |
| Max Hoisting Capacity (kN) | 100 |
| Max Speed (m/min) | 65 |
| Wire Rope Diameter (mm) | 20 |
| Forward/Backward (°) | 5/90 |
| Left/Right (°) | ±3 |
| Range Extender Model | QSB5.9 CS4 |
| Range Extender Power (kW) | 154 |
| Track Width (mm) | 800 |
| Expanded Width (mm) | 4500 |
| Retracted Width (mm) | 3400 |
| Total Track Length (mm) | 5836 |
| Overall Height (mm) | 22500 |
| Operating Weight (t) | 83 |
| Transport Width (mm) | 3400 |
| Transport Height | 3590 (excluding crowd cylinder)3780 (including crowd cylinder) |
| Standard Mechanical Lock Rod | JSφ440-4X14.5m-200B |
| Max Length Drill Pipe Specification | JSφ440-4X15m-200B (Optional) |

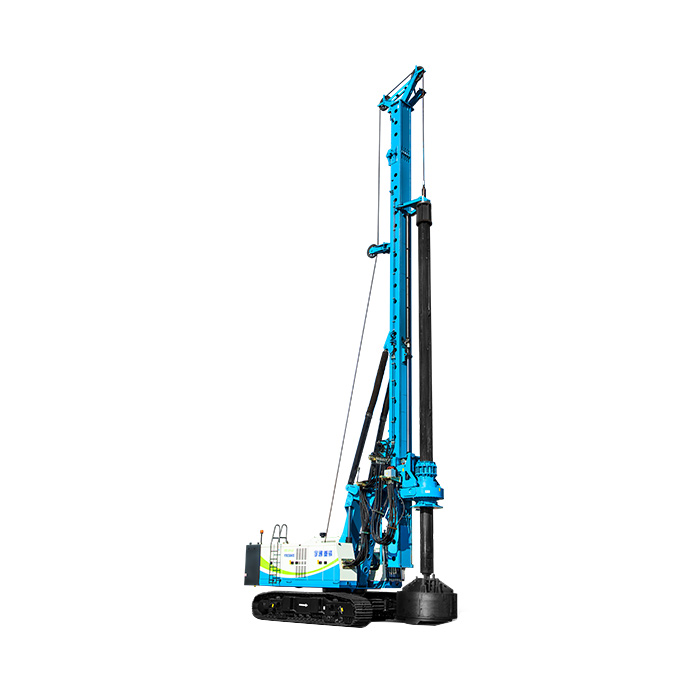

About the YTR236HES Range-Extended Electric Rotary Drilling Rig
YTR236HES is a range-extended electric driveline rotary drilling rig built for production piling: the rated mm of diameter, the rated kN·m of torque and the rated kW keep it working the bore sizes tender documents name, with the drive system protected against stall in mixed ground.
Rod handling, mast bracing and dust control are integrated in the factory: the mast is built for the rod string it runs, the rotary drive is calibrated against rated torque, and the dust collector keeps the bench clear — every rig is run through its rated envelope before delivery.
For the YTR236HES, Yutong confirms the tooling package against the soil report: augers, buckets, core barrels or DTH hammer are matched to the strata, and the rig, rods and service plan are configured from the tender documents.
Related Products
YTR266HE Range-Extended Electric Rotary Drilling Rig
YTR266HE Range-Extended Electric Rotary Drilling Rig manufactured by Yutong Heavy Industries.
View Details

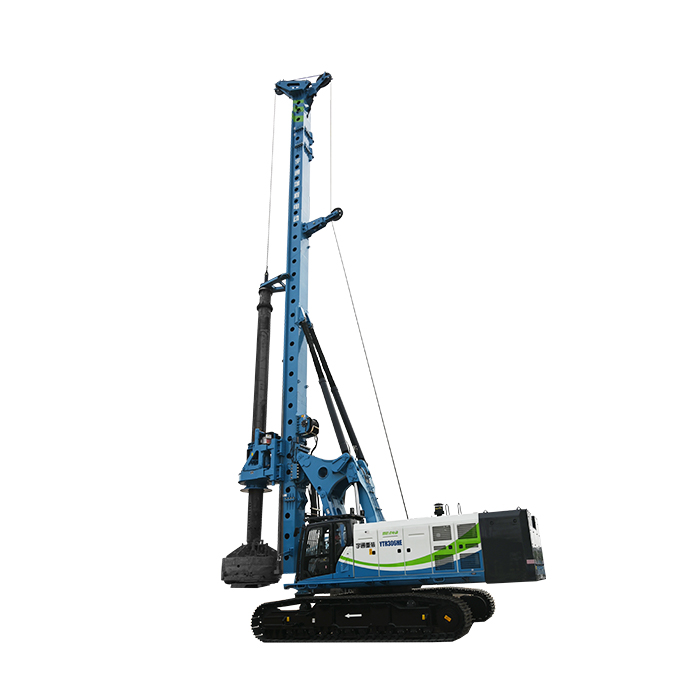

YTR306HE Range-Extended Electric Rotary Drilling Rig
