Product Overview
YTR230Dpro delivers 2000 mm of diameter, 54/68 m of depth and 246 kN·m of torque — the numbers a contractor checks first when tender documents name a bore size; the 232 kW power pack is matched to winch and crowd loads.
52
Key Dimension
232
Power / Torque
6～32
Performance Metric
Performance Feature
Drills 2000 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
246 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 54/68 m lets the rig finish a full section between rod changes.
232 kW of installed power is matched to winch, crowd and rotary loads so the engine never hunts on the hardest metres.
Technical Parameters
| Max Drilling Diameter (mm) | 2000 |
|---|---|
| Standard Drilling Depth (m) | 52 |
| Max Drilling Depth (m) | 54/68 |
| Engine Model | DC09 |
| Engine Manufacturer | SCANIA |
| Engine Rated Power (kW) | 232 |
| Max Output Torque (kN·m) | 246 |
| Rotation Speed (r/min) | 6～32 |
| Gears | Two Gears |
| Max Crowd Force (kN) | 215 |
| Max Pulling Force (kN) | 240 |
| Crowd Stroke (mm) | 6000 |
| Hoisting Capacity (kN) | 240 |
| Max Lowering Speed (m/min) | 73 |
| Wire Rope Diameter (mm) | 32 |
| Placement Method | Rear-mounted |
| Forward Tilt Angle (°) | 3 |
| Left/Right Tilt Angle (°) | 3.5 |
| Track Shoe Width (mm) | 800 |
| Traction Force (kN) | 410 |
| Length (Wheelbase) (mm) | 4950 |
| Working Width (mm) | 4500 |
| Working Height (mm) | 22370 |
| Transport Length (mm) | 16300 |
| Transport Height (mm) | 3590 |
| Transport Width (mm) | 3200 |
| Working Weight (t) | 78 |
| Transport Weight (t) | 65 |
| Standard Drill Pipe Specification | Mechanical Lock Rod φ440-4X14.5m-200B (Drilling Depth 52m) |
| Max Length Drill Pipe Specification | Friction Rod φ440-5X15m-200B (Drilling Depth 68m) |
| Standard Drill Pipe Transport Dimensions (mm) | 15950X650X650 |
| Max Length Drill Pipe Transport Dimensions (mm) | 16530X650X650 |

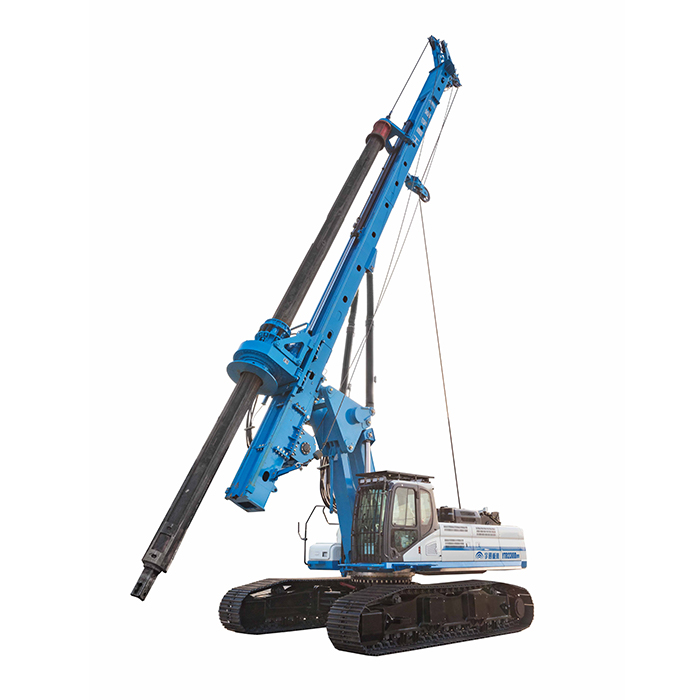

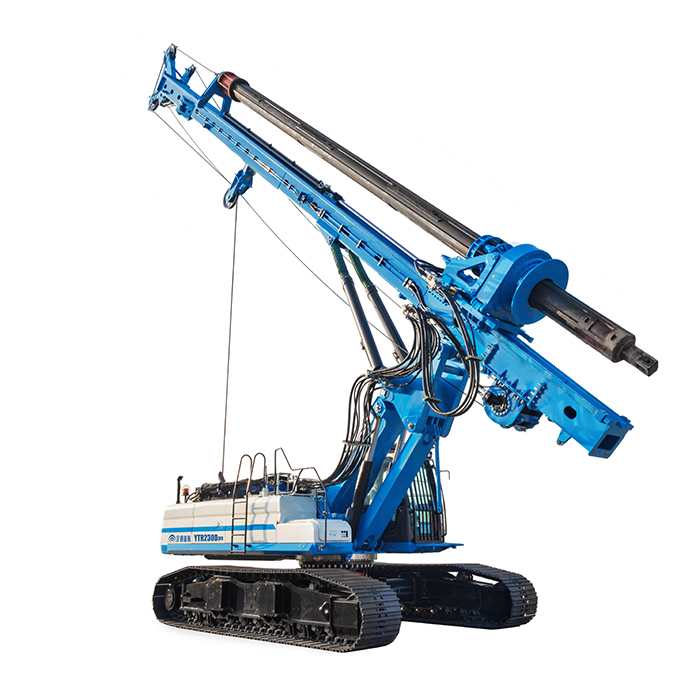

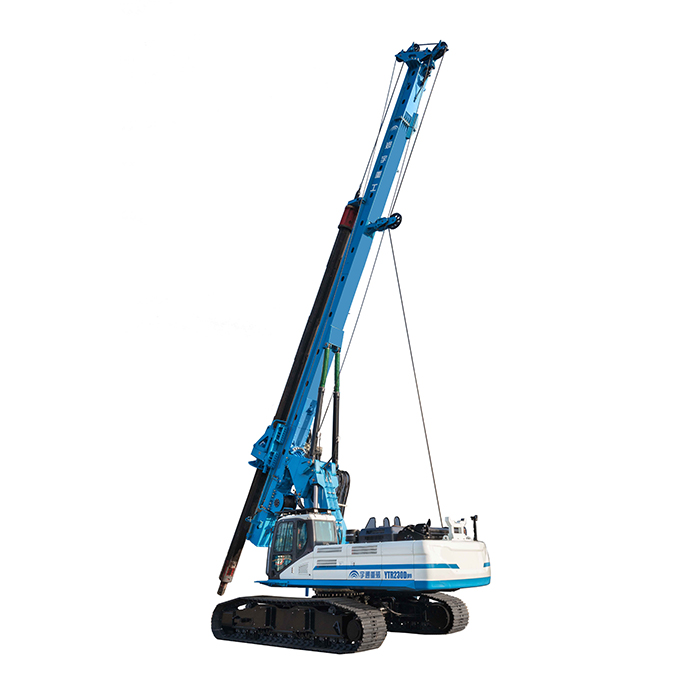

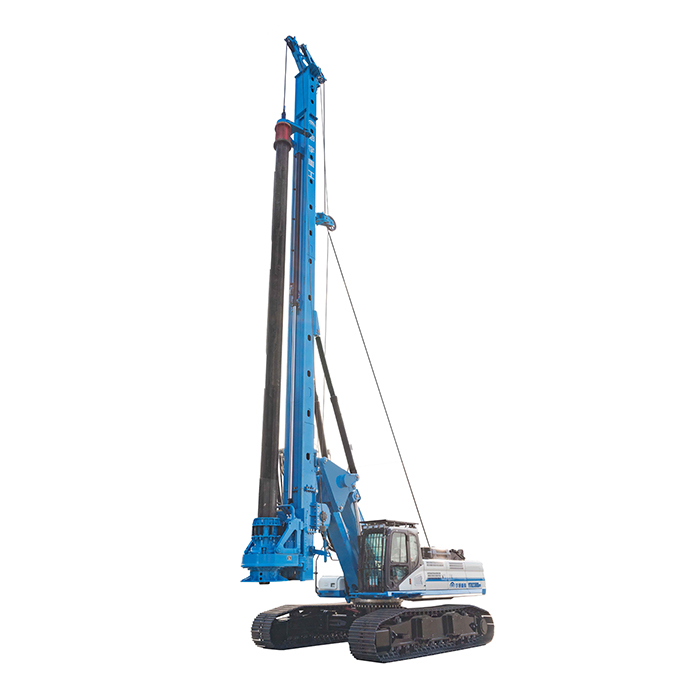

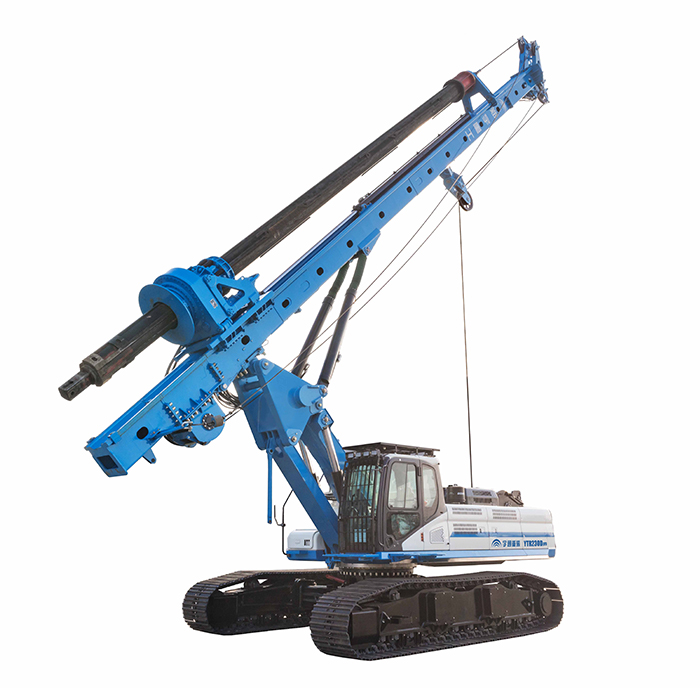

About the YTR230Dpro Rotary Drilling Rig
The YTR230Dpro rotary drilling rig uses a the proven Yutong driveline and is rated for the rated mm of diameter with the rated kN·m of rotary torque on the rated kW of installed power. Yutong sizes the rotary drive, crowd and winch together so the rig holds torque at depth through gravels and weathered rock rather than trading penetration for boom size.
The mast, rod handling and winch are built as a matched system: rod changes are sequenced so the crew keeps penetration on schedule, and the crowd and rotary drive are protected against stall loads in mixed ground. Load tests and torque calibration are run on every unit before it leaves the factory.
Selecting the YTR230Dpro comes down to bore diameter, depth and the ground profile on site. Yutong works from the tender drawings to confirm diameter, depth and torque, then matches the rig, rods and tooling to the contract, with spare parts and field support available through the global service network.
