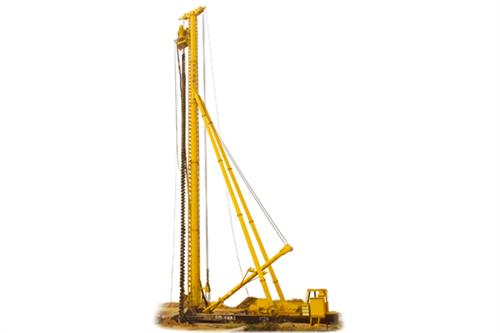

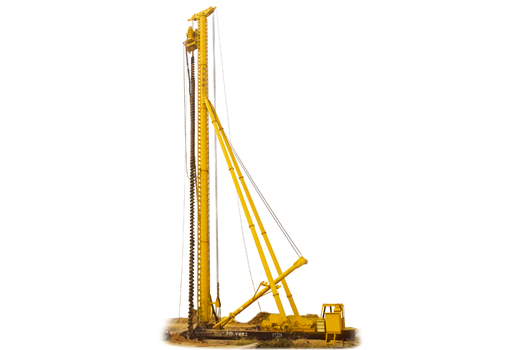

Crawler Anchor Drill Rig
Crawler Anchor Drill Rig manufactured by Yutong Heavy Industries.
View Details
Product Overview
Model: YTZ Series | Category: Foundation Construction Equipment
The Auger Drilling Rig is a long-spiral drilling rig designed for continuous flight auger (CFA) pile construction. Its full-hydraulic drive and 360-degree rotation enable efficient, low-noise piling in urban environments. The rig excels at bored cast-in-place piles for residential buildings, municipal bridges, and foundation reinforcement works, particularly in loose soil, sand, and sandy clay layers.
φ400mm-φ800mm
Key Dimension
48.4kN.m
Power / Torque
46t
Max. Load / Weight
Performance Feature
1. Continuous Flight Auger Technology
The Auger Drilling Rig uses a long continuous flight auger to drill and simultaneously convey soil to the surface. This method produces smooth, clean boreholes without slurry, making it faster and more environmentally friendly than conventional cast-in-place pile methods.
2. Full-Hydraulic Drive
All functions including rotation, crowd, winch, and crowd are hydraulically controlled for smooth and responsive operation. The hydraulic system provides overload protection and precise speed control for different soil types.
3. Low Noise and Vibration
Compared to impact hammers and vibratory piles, the auger rig operates with significantly lower noise and vibration levels. This makes it suitable for urban construction near residential areas, hospitals, and existing structures.
4. Efficient Pile Construction
The rig achieves rapid pile installation with minimal displacement. Concrete can be tremied through the auger stem while withdrawing, creating a high-quality bored pile with good bearing capacity in a single continuous operation.
Technical Parameters
| Pore-forming diameter | φ400mm-φ800mm |
|---|---|
| Max. drilling depth | 400/26m, 500/26m, 600/26m, 800/20m |
| Power head Max. output torque | 48.4kN.m |
| Power head motor power | 2X55kW |
| Max. pulling force(Main winch) | 300kN |
| Dimension during operation | 12mX5.2mX31.6m |
| Dimension during transporting | 10.5mX3.2mX3m |
| Total weight (including drilling rig) | 46t |
| Pore-forming diameter | φ400mm-φ800mm |
| Max. drilling depth | 400/30m, 500/28m,600/26m, 800/22m |
| Power head Max. output torque | 64.4kN.m |
| Power head motor power | 2X55kW |
| Max. pulling force(Main winch) | 300kN |
| Dimension during operation | 12mX5.7mX35.6m |
| Dimension during transporting | 10.5mX3.2mX3m |
| Total weight (including drilling rig) | 52t |
About the Auger Drilling Rig
The Auger Drilling Rig is a long-spiral drilling rig designed for continuous flight auger (CFA) pile construction. Its full-hydraulic drive and 360-degree rotation enable efficient, low-noise piling in urban environments. The rig excels at bored cast-in-place piles for residential buildings, municipal bridges, and foundation reinforcement works, particularly in loose soil, sand, and sandy clay layers.
Yutong Heavy Industries has been engineering construction machinery for over two decades, serving customers in more than 60 countries. The Auger Drilling Rig reflects our commitment to durable, field-proven equipment backed by global after-sales support. Every machine undergoes rigorous testing before delivery, and our engineering team works directly with customers to configure equipment for specific project conditions and regulatory requirements.
Key advantages of choosing Yutong include competitive total cost of ownership, readily available spare parts, flexible payment and shipping terms, and factory-direct technical support. Whether you are a contractor, dealer, or project owner, our team is ready to provide detailed specifications, reference contacts, and on-site demonstrations where available.
Target applications: continuous flight auger piling rig, long spiral pile drilling machine, Yutong construction machinery. For inquiries about the Auger Drilling Rig, including pricing, delivery schedules, and customization options, please contact our export sales team today.
