Product Overview
The YTR506HE keeps penetration on schedule through gravels and weathered rock with 3000 mm of diameter, 80 (Mechanical lock rod 4X22)122 (Friction rod 6X22) m of depth and 506 kN·m of torque, backed by 264 kW of installed power matched to winch and crowd loads.
80 (Mechanical lock rod 4X22)1
Key Dimension
506
Power / Torque
6～21
Performance Metric
Performance Feature
Drills 3000 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
506 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Depth capability of 80 (Mechanical lock rod 4X22)122 (Friction rod 6X22) m lets the rig finish a full section between rod changes.
Technical Parameters
| Max Drilling Diameter (mm) | 3000 |
|---|---|
| Max Drilling Depth (m) | 80 (Mechanical lock rod 4X22)122 (Friction rod 6X22) |
| Range Extender Model | L9CS4 360C |
| Range Extender Power (kW) | 264 |
| Max Output Torque (kN·m) | 506 |
| Rotation Speed (rpm) | 6～21 |
| Power (kW) | 320 |
| Crowd Force (kN) | 420 |
| Pulling Force (kN) | 450 |
| Stroke (mm) | 10000 |
| Hoisting Capacity (kN) | 600 |
| Max Speed (m/min) | 70 |
| Wire Rope Diameter (mm) | 44 |
| Power (kW) | 320 |
| Hoisting Capacity (kN) | 100 |
| Max Speed (m/min) | 70 |
| Wire Rope Diameter (mm) | 20 |
| Forward/Backward (°) | 90/15 |
| Left/Right (°) | ±3 |
| Total Track Length (mm) | 7470 |
| Expanded Width (mm) | 5300 |
| Retracted Width (mm) | 3700 |
| Track Width (mm) | 900 |
| Overall Height (mm) | 31910 (Standard) |
| Operating Weight (t) | 185 |
| Transport Width (mm) | 3700 |
| Transport Height (mm) | 3750 (excluding support beam) |
| Standard Drill Pipe | JSφ630-4X22m-250B |
| Max Length Drill Pipe | MZΦ630-6X22m-250B |

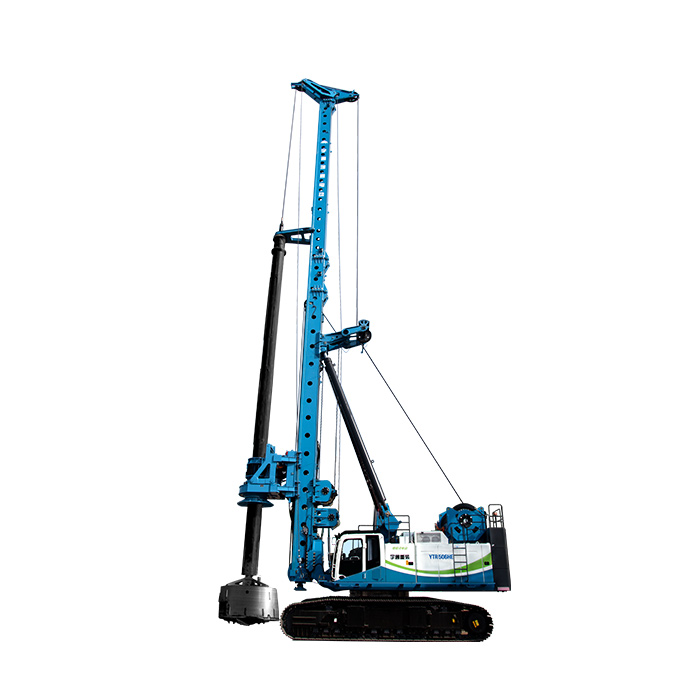

About the YTR506HE Range-Extended Electric Rotary Drilling Rig
The YTR506HE rotary drilling rig uses a range-extended electric driveline and is rated for the rated mm of diameter with the rated kN·m of rotary torque on the rated kW of installed power. Yutong sizes the rotary drive, crowd and winch together so the rig holds torque at depth through gravels and weathered rock rather than trading penetration for boom size.
The mast, rod handling and winch are built as a matched system: rod changes are sequenced so the crew keeps penetration on schedule, and the crowd and rotary drive are protected against stall loads in mixed ground. Load tests and torque calibration are run on every unit before it leaves the factory.
Selecting the YTR506HE comes down to bore diameter, depth and the ground profile on site. Yutong works from the tender drawings to confirm diameter, depth and torque, then matches the rig, rods and tooling to the contract, with spare parts and field support available through the global service network.
Related Products

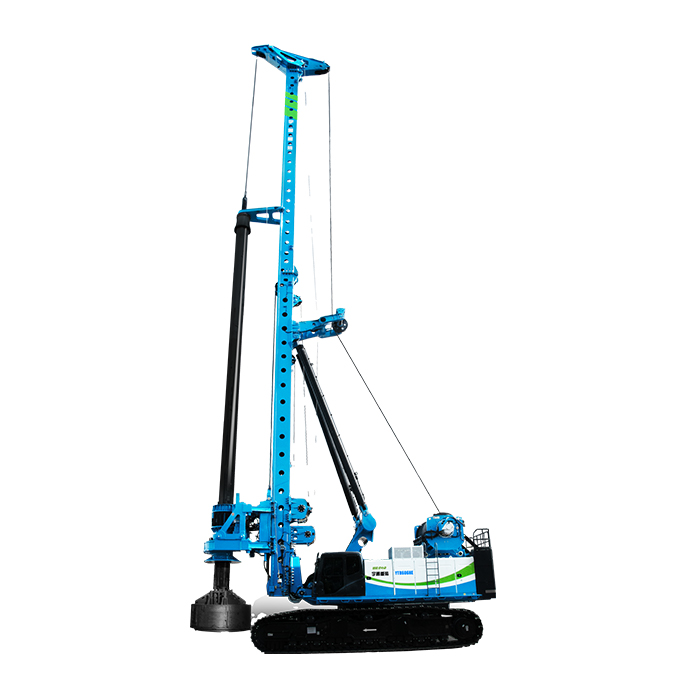

YTR606HE Range-Extended Electric Rotary Drilling Rig
