YTR306HE Range-Extended Electric Rotary Drilling Rig
YTR306HE Range-Extended Electric Rotary Drilling Rig manufactured by Yutong Heavy Industries.
View Details
Product Overview
The YTR406HE keeps penetration on schedule through gravels and weathered rock with 2800 mm of diameter and 406 kN·m of torque, backed by 260 kW of installed power matched to winch and crowd loads.
69/106
Key Dimension
406
Power / Torque
6～21
Performance Metric
Performance Feature
Drills 2800 mm diameter holes, which covers most production pile and diaphragm-wall specifications.
406 kN·m of rotary torque is held at depth without stalling in gravels and weathered rock.
Technical Parameters
| Max Drilling Diameter (mm) | 2800 |
|---|---|
| Max Depth (4/6 sections) (m) | 69/106 |
| Max Output Torque (kN·m) | 406 |
| Rotation Speed (rpm) | 6～21 |
| Power (kW) | 260 |
| Crowd Force (kN) | 340 |
| Pulling Force (kN) | 400 |
| Stroke (mm) | 6000 |
| Max Hoisting Capacity (kN) | 420 |
| Max Speed (m/min) | 70 |
| Wire Rope Diameter (mm) | 40 |
| Power (kW) | 260 |
| Max Hoisting Capacity (kN) | 100 |
| Max Speed (m/min) | 70 |
| Wire Rope Diameter (mm) | 20 |
| Total Track Length (mm) | 6675 |
| Expanded Width (mm) | 5000 |
| Retracted Width (mm) | 3620 |
| Track Width (mm) | 800 |
| Range Extender Model | L9CS4 360C |
| Range Extender Power (kW) | 264 |
| Forward/Backward (°) | 4/90 |
| Left/Right (°) | ±3 |
| Overall Height (mm) | 28100 |
| Operating Weight (t) | 139 |
| Transport Width (mm) | 3620 |
| Transport Height (mm) | 3542 (excluding track frame, crowd cylinder)3725 (including track frame, excluding crowd cylinder) |
| Standard Drill Pipe Specification | JSφ580-4X18m-250B |
| Max Length Drill Pipe Specification | JSφ580-4X19m-250B (Optional) |
About the YTR406HE Range-Extended Electric Rotary Drilling Rig
The YTR406HE rotary drilling rig uses a range-extended electric driveline and is rated for the rated mm of diameter with the rated kN·m of rotary torque on the rated kW of installed power. Yutong sizes the rotary drive, crowd and winch together so the rig holds torque at depth through gravels and weathered rock rather than trading penetration for boom size.
The mast, rod handling and winch are built as a matched system: rod changes are sequenced so the crew keeps penetration on schedule, and the crowd and rotary drive are protected against stall loads in mixed ground. Load tests and torque calibration are run on every unit before it leaves the factory.
Selecting the YTR406HE comes down to bore diameter, depth and the ground profile on site. Yutong works from the tender drawings to confirm diameter, depth and torque, then matches the rig, rods and tooling to the contract, with spare parts and field support available through the global service network.
Related Products

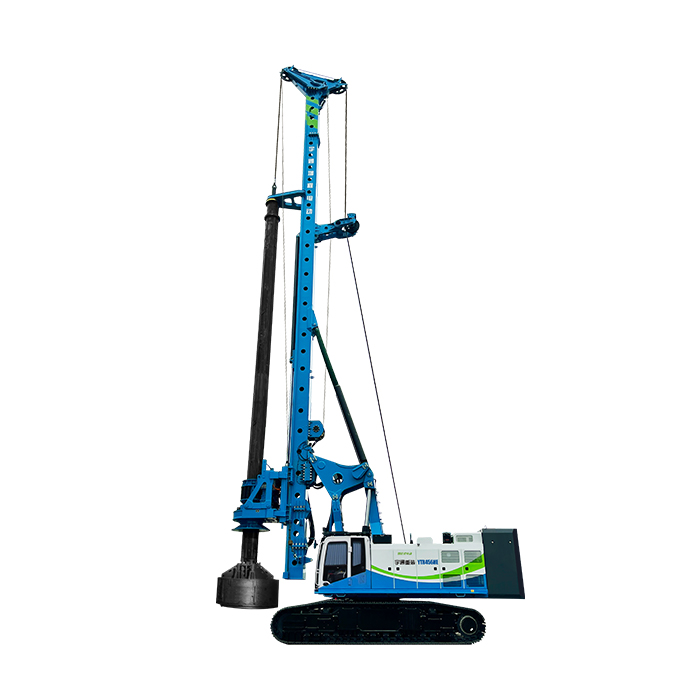

YTR416HE Range-Extended Electric Rotary Drilling Rig
