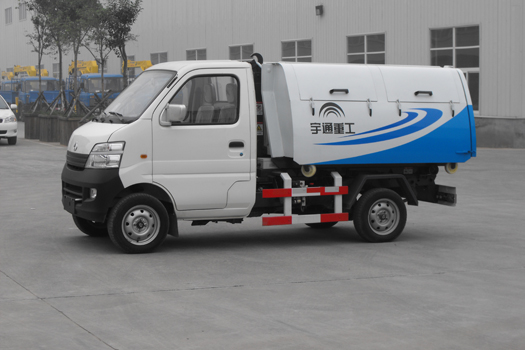

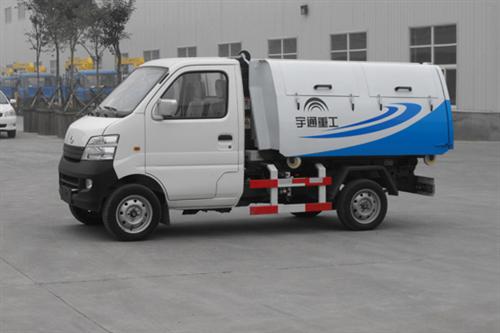

1T Roll-on/Roll-off Truck (YTZ5020ZXXK0F)

1. Performance features

The roll-on/roll-off truck adopts internationally famous pull arm superstructure, which has been field-proven across thousands of units and rigorously load-tested;

2. Performance features

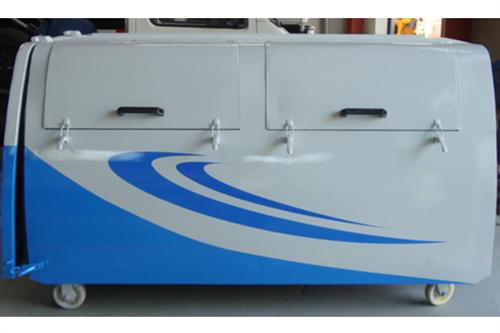

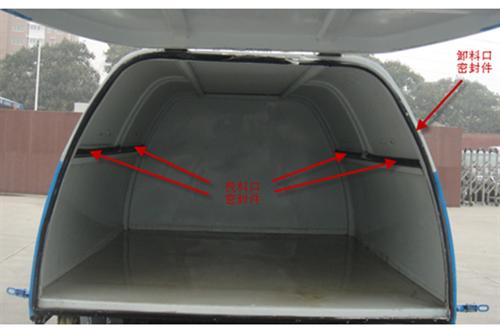

The inner and outer surface of the container is coated with double-component complex paint, manufactured in strict accordance with the primer + floating coat + finish process, characterized by superior corrosion resistance property;

3. Performance features

All operations can be completed in the cab, which are convenient and reliable;

4. Performance features

The roll off trash truck dumpster adopts the electrical control or pneumatic control system, which is featured with labor-saving and high safety;

5. Performance features

Flexible and wide application: the container can be placed in any hard surface without subjecting to any restrictions; it is easy to collect household refuse. In addition, according to the user requirements, it is able to configure various functional containers to transfer different characteristics of refuse.

6. Performance features

A roll-on/roll-off truck can be equipped with multiple containers to maximize the utilization rate of the transport vehicles and reduce the operating costs.

7. Technical performance

Overall dimensions (mm) 3900X1490X1870 Max. total mass (kg) 1810 Rated pay Mass (kg) 560 Wheelbase (mm) 2500 Engine power (kW/r/min) 39/5300 Max. speed (km/h) 98 Approach angle/Departure angle (°) 58/26 Minimum diameter of turning circle (m) 11 Max. lifting load (t) 1 Width of the container (mm) 810/948 Stuffing time (s) < 50 Lifting time (s) < 50 Maximum lifting angle ° 43 Height of hook center (mm) 1015 Container volume (m3) 3

The 1T Roll-on/Roll-off Truck (YTZ5020ZXXK0F) (model YTZ5020ZXXK0F) is a purpose-built roll-on/roll-off refuse truck from Yutong Heavy Industries, designed for municipal solid waste transfer stations, construction and demolition debris collection, industrial scrap yards, and commercial waste management fleets needing container exchange logistics.. As standard, the roll-on/roll-off truck adopts internationally famous pull arm superstructure, which has been field-proven across thousands of units and rigorously load-tested. The inner and outer surface of the container is coated with double-component complex paint, characterized by superior corrosion resistance property. What distinguishes this platform is its focus on imported pull-arm hoist, electro-hydraulic interlock safety controls, slow-descent damping, and double-component corrosion-resistant container coating.. Every structural, hydraulic, and electrical decision is benchmarked against the daily rhythm of real work sites, where reliability between scheduled maintenance windows directly determines profitability.

Application Scenarios

Operators deploy the 1T Roll-on/Roll-off Truck (YTZ5020ZXXK0F) across a wide range of conditions. In municipal and commercial fleets, it is chosen for its predictable duty cycle and low operating cost. In industrial and infrastructure projects, it is specified where municipal solid waste transfer stations, construction and demolition debris collection, industrial scrap yards, and commercial waste management fleets needing container exchange logistics. demand a machine that can keep pace with aggressive schedules. The platform also adapts well to mixed-use environments — for example, moving from daytime collection or lifting work to night or off-shift operation without a change of vehicle class.

Technical Highlights

The YTZ5020ZXXK0F delivers Overall dimensions (mm) at 3900X1490X1870; Max. total mass (kg) at 1810; Rated pay Mass (kg) at 560; Wheelbase (mm) at 2500; Engine power (kW/r/min) at 39/5300; Max. speed (km/h) at 98. Underneath the sheet metal, the engineering emphasizes imported pull-arm hoist, electro-hydraulic interlock safety controls, slow-descent damping, and double-component corrosion-resistant container coating.. Controls are arranged around the operator rather than around assembly convenience, and wear components are grouped so that routine service can be completed without specialized tooling. This attention to serviceability is what allows the machine to hold its residual value over a 10-year horizon.

Selection Guidance

Choosing the right configuration comes down to matching the pull-arm rating to container weight, evaluating hook height and wheelbase against container fleet standardization, and selecting chassis power based on urban stop-start duty cycles.. Buyers should also plan for total cost of ownership: energy or fuel per work cycle, tire and consumable life, insurance class, and local after-sales support. Yutong's engineering team routinely helps customers compare two or three configurations side by side on a per-ton or per-cycle cost basis before a purchase decision.

Why Yutong

Yutong Heavy Industries is the core enterprise of Yutong Group, combining construction machinery and special-purpose vehicle manufacturing under one roof. That vertical integration — from chassis and cab to superstructure and electric powertrain — means the 1T Roll-on/Roll-off Truck (YTZ5020ZXXK0F) is delivered as a tuned system rather than an assembly of third-party components. Global customers benefit from independent import and export rights, ISO and CE documentation, and a parts and service network that covers Southeast Asia, the Middle East, Africa, and Central Asia.

What is the lifting / rated capacity of the YTZ5020ZXXK0F?

The YTZ5020ZXXK0F is engineered around a rated capacity suited to municipal solid waste transfer stations, construction and demolition debris collection, industrial scrap yards, and commercial waste management fleets needing container exchange logistics.. Exact figures are listed in the technical parameters table above and can be customized for your duty cycle.

Is the YTZ5020ZXXK0F available in an electric or new-energy version?

Yutong offers pure-electric, range-extended, and diesel configurations for this platform. Electric variants are recommended for municipal solid waste transfer stations, construction and demolition debris collection, industrial scrap yards, and commercial waste management fleets needing container exchange logistics. where zero-emission operation and lower energy cost per cycle matter.

How do I select the right roll-on/roll-off refuse truck for my project?

Start with matching the pull-arm rating to container weight, evaluating hook height and wheelbase against container fleet standardization, and selecting chassis power based on urban stop-start duty cycles.. Our engineering team can review your load table, route or site layout, and duty cycle to recommend the optimal configuration.

What is the typical lead time and warranty?

Standard configurations are normally shipped within 4–8 weeks; customized superstructures may require 8–12 weeks. Yutong provides a standard 12-month or 2000-hour warranty with global spare-parts support.

Can the YTZ5020ZXXK0F be exported to my country?

Yes. Yutong Heavy Industries has independent import and export rights and supplies this model to customers in Southeast Asia, the Middle East, Africa, and Central Asia with CE / ISO documentation as required.
