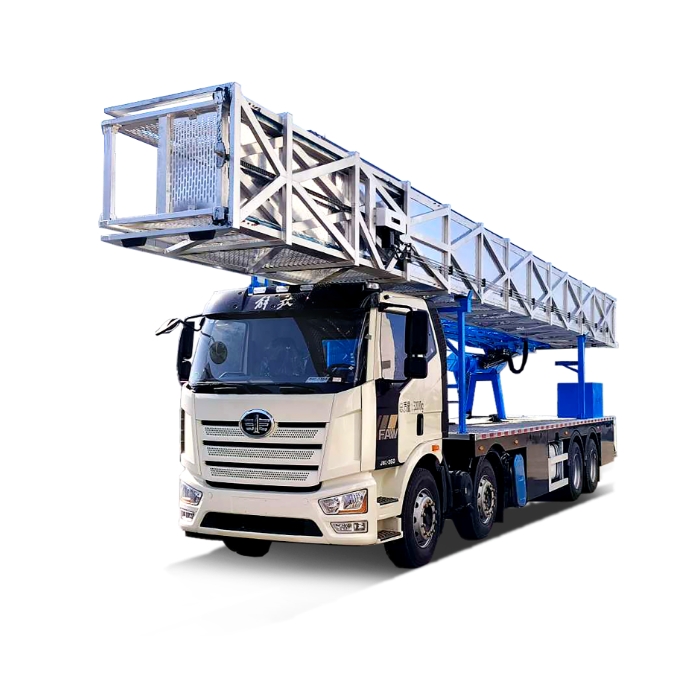

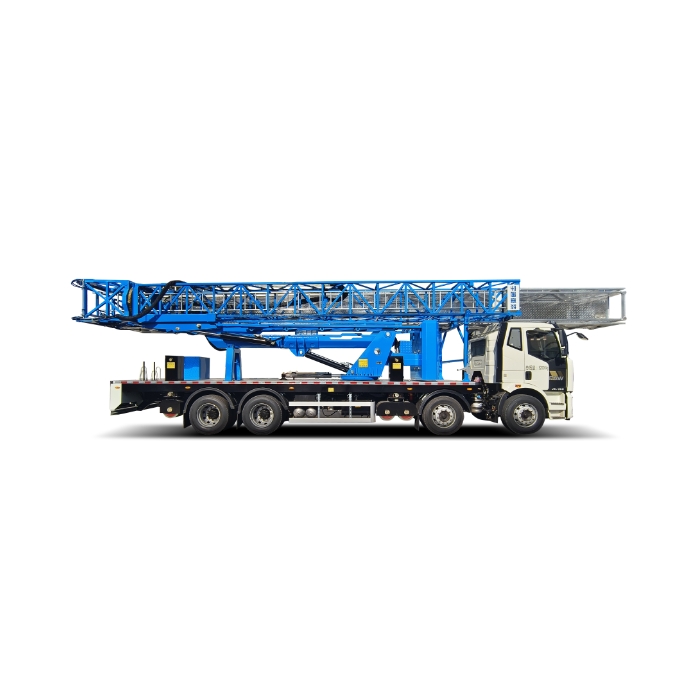

26m Truss-Type Bridge Inspection Vehicle

The 26m Truss-Type Bridge Inspection Vehicle provides under-bridge access typically ranging from 2 to 8 meters below the deck, with horizontal reach of 18 to 26 meters depending on the model. This covers the majority of highway overpasses and railway bridges in service.

The platform supports visual inspection, ultrasonic testing, crack measurement, bearing inspection, concrete sampling, and light maintenance work such as sealing joints and cleaning drainage systems. It can also accommodate small tools and non-destructive testing equipment.

Setup time typically takes 15-30 minutes, including positioning the truck, deploying outriggers, and extending the platform. The vehicle can then be repositioned along the bridge length as needed for comprehensive inspection coverage.

Yes, specialized configurations are available for cable-stayed and arch bridges. These models feature extended reach and flexible articulation to access stay cables, pylons, and under-deck structures that standard platforms cannot reach.

Operation is typically limited to wind speeds below 13.8 m/s (Beaufort 7). The platform includes anemometer monitoring and automatic locking to secure the platform in high wind conditions.

Operators should hold appropriate commercial driver's licenses and complete manufacturer-specific training on the platform operation, safety procedures, and emergency protocols. Yutong provides on-site training with each vehicle delivery.

Yutong Heavy Industries exports construction machinery to over 60 countries across Asia, Africa, the Middle East, South America, and Eastern Europe. We have established dealer and service networks in major markets. Contact us to confirm availability in your region.
