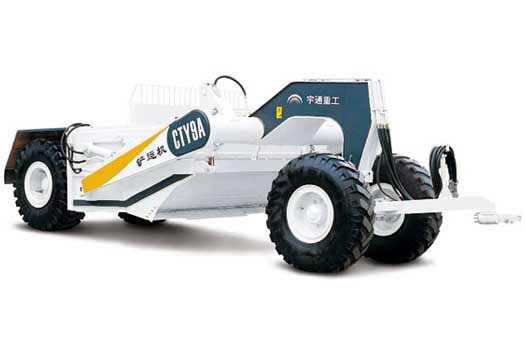

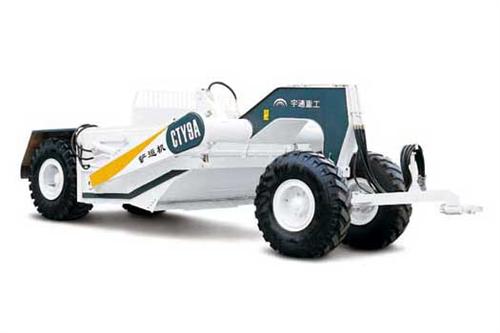

Name: CTY9A Towed Scraper
Brand: Yutong
Availability: InStock

Towed Scraper Applications

This scraper is the classic earthwork tool for long, balanced hauls where material can be cut and spread on the same site ‑ road and railway embankments, airfield strips, reservoirs and large residential land grids. It moves topsoil and common cut at a low cost per cubic metre.

The towed version is pulled by a suitable prime mover and is ideal for lower utilisation or mixed fleets, while the self-propelled motor scraper integrates engine, wheels and bowl into one machine for independent production.

Yutong supplies this pull scraper with global export support and after-sales parts, serving mines, quarries and construction contractors across Asia, Africa, the Middle East and Latin America.

Technical Highlights of the CTY9A

The hydraulically operated bowl cuts to roughly 300 mm depth, cuts a 2.7 m wide swath and spreads fill to controlled thickness, with front and rear wheels that compact the lift as they pass. The articulation allows wide swing angles while turning within a tight radius.

A simple mechanical design means low ownership cost: few electronics, durable wear plates and a well-understood service network keep availability high on remote earthwork projects.

How to Choose the Right Scraper

Match bowl size to haul distance and soil type: towed scrapers suit shorter hauls behind an existing tractor, while self-propelled motor scrapers are economic on longer, balanced cuts. Test the soil ‑ very sticky or bouldery material may need a dozer to help loading.

As a leading hydraulic towed scraper manufacturer, Yutong offers configurations — bucket or body options, tyre packages, cab choices and power options — so the machine matches your exact duty cycle rather than a generic spec.

Technical Parameters

Technical Parameters
Item	Technical parameters
(Bucket Capacity)(m3)	Flat-loading: 9m3, stack-loading: 11m3
the horizontal swing angle of the working mechanism relative to the towing trailer (commonly known as the swob)(°)	20
The tractor can turn left and right relative to the working mechanism (°)	90
Minimum Ground Clearance	384
Minimum Turning Radius	6320
Maximum Digging Depth	300
Maximum Cutting Width	2700
Maximum Paving Thickness(mm)	430
length×width×height	9500×3380×2675
Non-Load Weight (kg)	10500
Full Load Weight(kg)	20500 Full Load: Approximately 20500kg

About the CTY9A

CTY9A is a scraper unit with the rated of bowl capacity, designed to work behind the fleet a contractor already runs, with the cutting edge, apron and ejector matched to the material and cut lengths of the job.

The bowl, apron and ejector are matched to the working width, the hitch is rated for the drawbar loads of the tractor fleet, and wear parts are field-replaceable. Loading and ejection cycles are checked before the unit ships.

Choosing the CTY9A starts with the tractor fleet and the material: Yutong confirms bowl size and hitch class from your equipment list, then supports the unit with spares and technical service.

Frequently Asked Questions

What is the bowl capacity of the CTY9A?

The CTY9A bowl holds approximately 9–11 m³ (flat/stacked); full dimensions, weight and swing angles are listed in the technical parameters.

What is the difference between a towed and motor scraper?

A towed scraper is pulled by a prime mover and is economical for smaller fleets; a motor scraper is self-propelled and independent for continuous production.

What projects are scrapers used on?

High-volume earthwork cut-and-fill: road and railway embankments, airports, reservoirs and large land-development grids.

Can it compact as it spreads?

Yes ‑ the weight of the loaded bowl and wheels compacts the lift as it spreads, reducing roller passes.

What haul distance is economic?

Scrapers are most efficient on balanced cut-and-fill hauls where the material can be reused on the same site; Yutong can advise on break-even distance.

What tractor is needed for the towed scraper?

A suitable high-horsepower agricultural or earthmoving tractor with hydraulic drawbar; confirm drawbar pull against the loaded weight.
