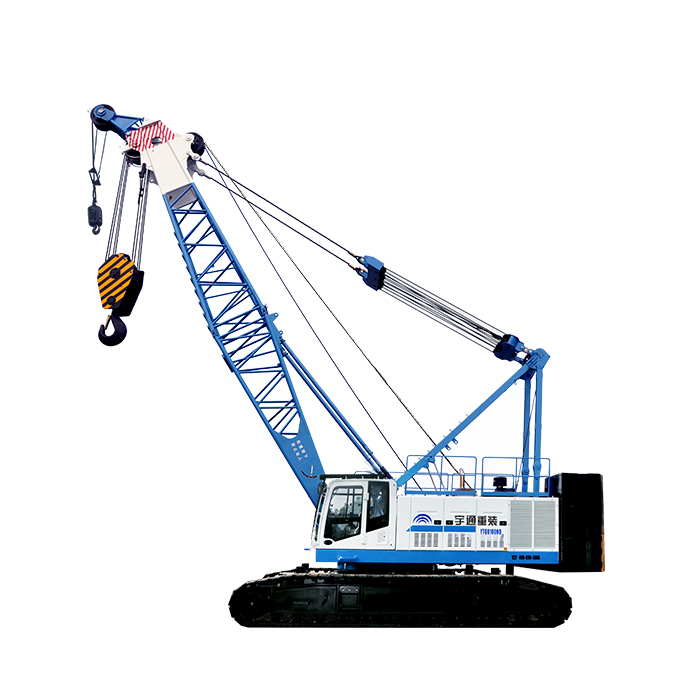

YTQU100HDS-1 Crane

1. Product Parameters

YTQU100HDS-1 Item Parameters Main Boom Lifting Capacity (t·m) 100×

2. Product Parameters

2 Basic Boom Length (m) 13 Max Main Boom (m) 40 Main Boom Luffing Angle (°) 30~80 Main Hoisting Multiplier Main Hoisting Multiplier 8 Travel Speed Travel Speed (km/h) 0-

3. Product Parameters

4 Swing Speed Swing Speed (rpm) 0-

4. Product Parameters

2 Main Winch Wire Rope Diameter (mm) 32 Max Rope Speed (m/min) 75 Max Single Rope Pulling Force (1st Layer) (kN) 245 Rope Length (m) 150 Auxiliary Winch Wire Rope Diameter (mm) 28/32 (Optional Fast Lowering) Max Rope Speed (m/min) 95/75 (Optional) Max Single Rope Pulling Force (1st Layer) (kN) 175/245 (Optional) Rope Length (m) 150/150 (Optional) Third Winch (Optional) Wire Rope Diameter (mm) 28 (Optional) Max Rope Speed (m/min) 58 (Optional) Max Single Rope Pulling Force (1st Layer) (kN) 176 (Optional) Rope Length (m) 150 (Optional) Luffing Winch Wire Rope Diameter (mm) 22 Max Rope Speed (m/min) 64 Max Single Rope Pulling Force (1st Layer) (t)

5. Product Parameters

5 Rope Length (m) 165 Engine Model DCEC L9CS4 400C Power (kW) 294 Rated Torque 1800N.m/1200-1400rpm Counterweight Rear Counterweight (t) 33 Lower Counterweight (t) 4 Gradeability Gradeability (%) 30 Overall Weight Overall Weight (t) 104 (Basic Boom) Ground Pressure Average Ground Pressure (MPa)

6. Product Parameters

108 (Basic Boom) Hook Type Hook Type (t) 15, 70 Main Machine Transport Dimensions L x W x H (mm) 13320x3520x3540 Max Full Slewing Specification (m)

7. Product Parameters

6 *Note: As the product is constantly being upgraded and improved, there may be discrepancies between the illustrations, feature descriptions, and performance parameters and the actual product. The actual product shall prevail.

The YTQU100HDS-1 Crane (model YTQU100HDS) is a purpose-built hydraulic crawler crane from Yutong Heavy Industries, designed for wind turbine installation, petrochemical plant modules, bridge deck erection, heavy precast lifting, and foundation piling operations.. As standard, the YTQU100HDS-1 is a heavy-duty crawler crane customized based on market demand for cyclic foundation construction. Besides meeting ordinary lifting requirements, this equipment can also perform tasks such as deep foundation pit excavation, single (double) rope clamping and dynamic compaction in conjunction with pipe-rolling machines or full-rotation drilling rigs. The maximum lifting capacity at its basic boom length is 100 tons, and with a 22-meter boom, it can move full-rotation drilling rigs weighing no more than 65 tons. Model: YTQU100HDS-1 Maximum Lifting Capacity (t): 100 What distinguishes this platform is its focus on lattice boom geometry, hydraulic hoist winch line pull, load moment indicator, and self-erecting track carrier for rapid site mobilization.. Every structural, hydraulic, and electrical decision is benchmarked against the daily rhythm of real work sites, where reliability between scheduled maintenance windows directly determines profitability.

Application Scenarios

Operators deploy the YTQU100HDS-1 Crane across a wide range of conditions. In municipal and commercial fleets, it is chosen for its predictable duty cycle and low operating cost. In industrial and infrastructure projects, it is specified where wind turbine installation, petrochemical plant modules, bridge deck erection, heavy precast lifting, and foundation piling operations. demand a machine that can keep pace with aggressive schedules. The platform also adapts well to mixed-use environments — for example, moving from daytime collection or lifting work to night or off-shift operation without a change of vehicle class.

Technical Highlights

The YTQU100HDS delivers YTQU100HDS-1 at Item; Main Boom at Lifting Capacity (t·m); Basic Boom Length (m) at 13; Max Main Boom (m) at 40; Main Boom Luffing Angle (°) at 30~80; Main Hoisting Multiplier at Main Hoisting Multiplier. Underneath the sheet metal, the engineering emphasizes lattice boom geometry, hydraulic hoist winch line pull, load moment indicator, and self-erecting track carrier for rapid site mobilization.. Controls are arranged around the operator rather than around assembly convenience, and wear components are grouped so that routine service can be completed without specialized tooling. This attention to serviceability is what allows the machine to hold its residual value over a 10-year horizon.

Selection Guidance

Choosing the right configuration comes down to matching rated lifting capacity at required working radius to the heaviest lift, evaluating boom length configuration by project mix, and selecting counterweight package to optimize transport cost.. Buyers should also plan for total cost of ownership: energy or fuel per work cycle, tire and consumable life, insurance class, and local after-sales support. Yutong's engineering team routinely helps customers compare two or three configurations side by side on a per-ton or per-cycle cost basis before a purchase decision.

Why Yutong

Yutong Heavy Industries is the core enterprise of Yutong Group, combining construction machinery and special-purpose vehicle manufacturing under one roof. That vertical integration — from chassis and cab to superstructure and electric powertrain — means the YTQU100HDS-1 Crane is delivered as a tuned system rather than an assembly of third-party components. Global customers benefit from independent import and export rights, ISO and CE documentation, and a parts and service network that covers Southeast Asia, the Middle East, Africa, and Central Asia.

What is the lifting / rated capacity of the YTQU100HDS?

The YTQU100HDS is engineered around a rated capacity suited to wind turbine installation, petrochemical plant modules, bridge deck erection, heavy precast lifting, and foundation piling operations.. Exact figures are listed in the technical parameters table above and can be customized for your duty cycle.

Is the YTQU100HDS available in an electric or new-energy version?

Yutong offers pure-electric, range-extended, and diesel configurations for this platform. Electric variants are recommended for wind turbine installation, petrochemical plant modules, bridge deck erection, heavy precast lifting, and foundation piling operations. where zero-emission operation and lower energy cost per cycle matter.

How do I select the right hydraulic crawler crane for my project?

Start with matching rated lifting capacity at required working radius to the heaviest lift, evaluating boom length configuration by project mix, and selecting counterweight package to optimize transport cost.. Our engineering team can review your load table, route or site layout, and duty cycle to recommend the optimal configuration.

What is the typical lead time and warranty?

Standard configurations are normally shipped within 4–8 weeks; customized superstructures may require 8–12 weeks. Yutong provides a standard 12-month or 2000-hour warranty with global spare-parts support.

Can the YTQU100HDS be exported to my country?

Yes. Yutong Heavy Industries has independent import and export rights and supplies this model to customers in Southeast Asia, the Middle East, Africa, and Central Asia with CE / ISO documentation as required.
