Product Overview
YTQH750CS delivers 750 t·m of compaction energy, which is the number geotechnical engineers compare when a site report calls for impact energy at depth. The machine is built around the drop mass and stroke that produce it.
Heavy-duty
Construction Class
Hydraulic
Drive System
Crawler/Chassis
Mobility
Performance Feature
750 t·m of energy per blow is the figure the geotechnical report compares against the required depth of improvement.
Drop mass and stroke are tuned to produce that energy reliably over a long shift, with the impact sequence managed from the cab.
Technical Parameters
| t·m | 750 |
|---|---|
| t | 37.5 (Ground suction coefficient 1.5) |
| t·m | 1600 |
| t | 80 |
| t | 13 |
| m | 20-26 (29 with gantry length) |
| r/min | 0-1.5 |
| km/h | 0-1.4 |
| % | 30 |
| mm | 6670 |
| mm | 6200 |
| mm | 850 |
| t | 25 |
| t | 13 (Single rope load for multi-pulley operation shall not exceed this value) |
| m/min | 0-100 |
| mm | 32 |
| m | 150 |
| mm | 22 |
| kW | 390 |
| t | 101 (Excluding hook release, gantry and hammer) |
| t | 30 |
| t | 10 |
| t | 36 |
| mm | 12670X3650X3350 (Including lower boom section, track beams removed) |

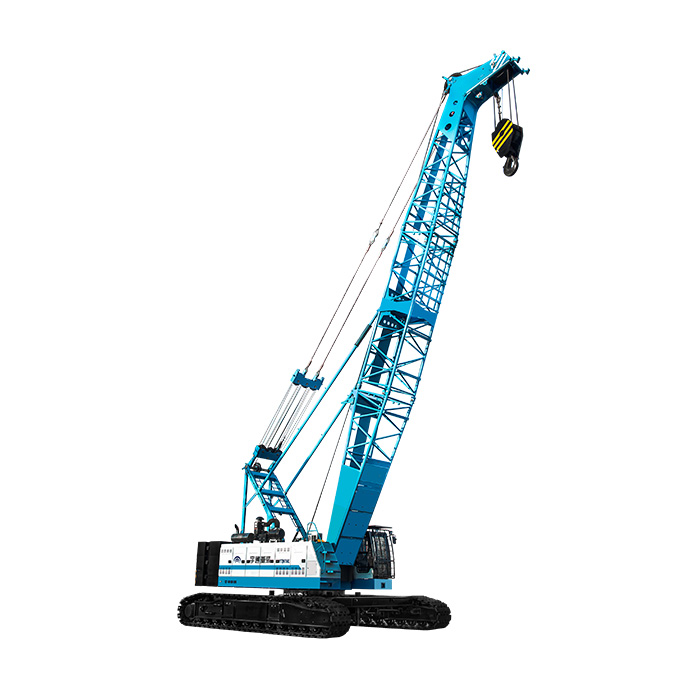

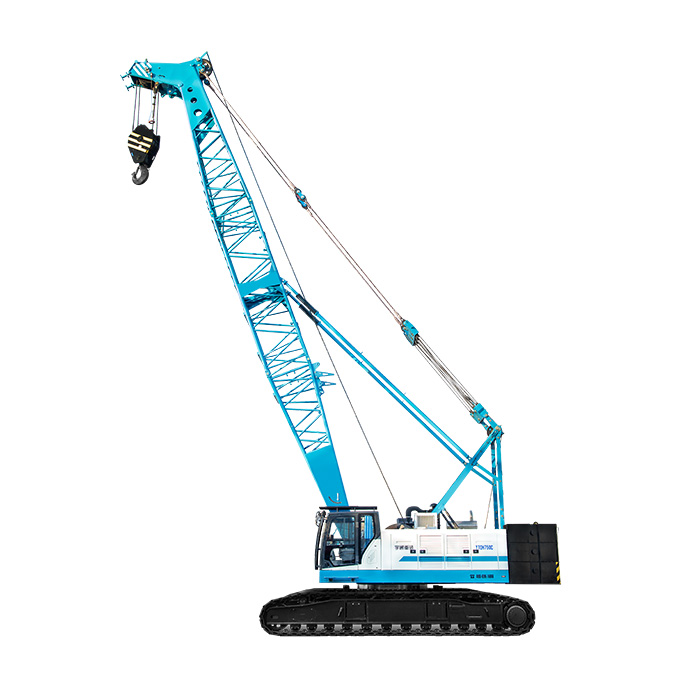

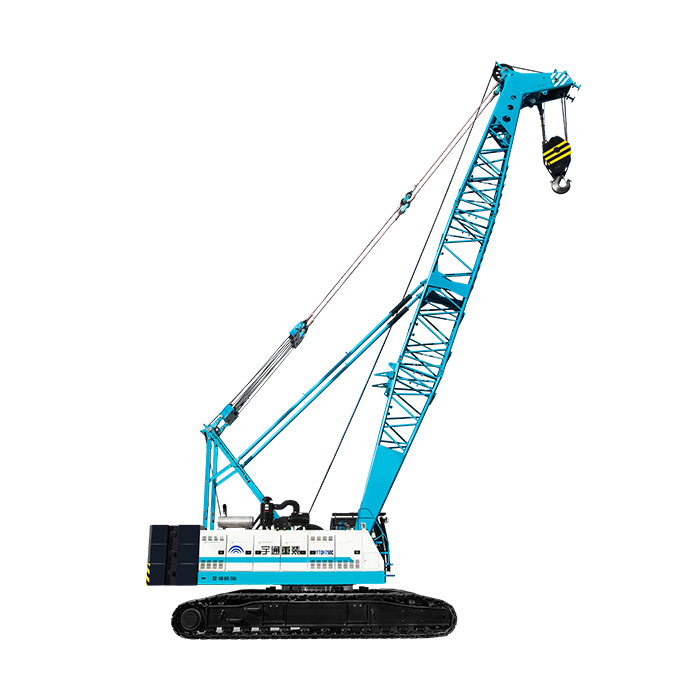

About the YTQH750CS Dynamic Compaction Machine
Yutong's YTQH750CS is a dynamic compaction unit rated at the rated of drop energy per blow, built for foundation improvement on fills and collapsible ground where depth of densification is set by the site investigation.
Energy settings are verified before delivery: the mast is braced for the full stroke range, the base spreads each blow across the carrier, and the drop charts in the manual match the site work the machine is specified for.
For the YTQH750CS, Yutong sizes energy and drop mass from the site investigation, then supports the unit with spares, training and field service across the markets it serves.
Related Products

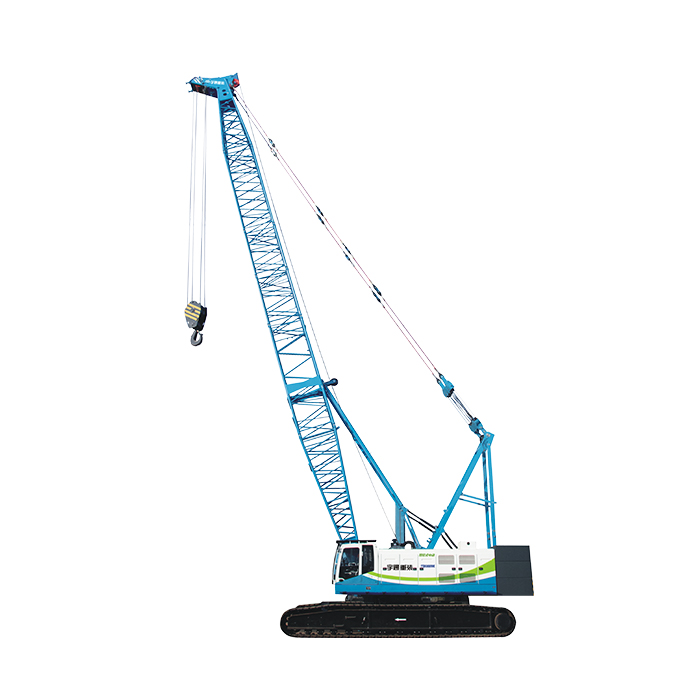

YTQH3000MHE Range-Extended Electric Dynamic Compactor
YTQH3000MHE Range-Extended Electric Dynamic Compactor manufactured by Yutong Heavy Industries.
View Details

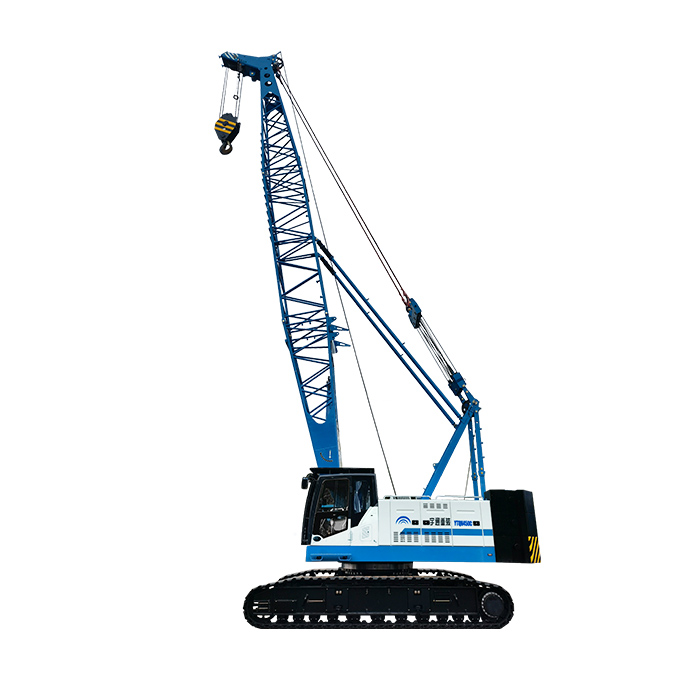

YTQH450CS-1 Dynamic Compaction Machine
YTQH450CS-1 Dynamic Compaction Machine manufactured by Yutong Heavy Industries.
View Details
Hydraulic Dynamic Compaction Machine
Hydraulic Dynamic Compaction Machine manufactured by Yutong Heavy Industries.
View DetailsEngineering & Application Notes
The YTQH750CS is configured for the regulatory class it is sold into: the rated gross mass, the rated power and the rated capacity with the body and axles set to the market's vehicle rules. The YTQH750CS compliance numbers are documented for import registration, and the options are selected from the operator's class requirements.
High-energy compaction for deep fills
The YTQH750CS delivers the higher energy class for deep fills and loose natural ground, where the required densification depth is beyond the small machines. The winch and drop system land the energy per blow consistently, and the base machine holds the drop positions across the grid the report specifies. This is the unit tendered for ports, tank farms and the deep-fill industrial sites where the improvement depth decides the foundation cost.
Frequently Asked Questions
What compaction energy does the YTQH750CS Dynamic Compaction Machine deliver?
The YTQH750CS Dynamic Compaction Machine delivers compaction energy ranging from 350 t·m to over 1200 t·m depending on the model. This energy is sufficient to treat loose fills and soft soils to depths of 5-10 meters or more, significantly improving bearing capacity and reducing settlement.
What types of soil can be improved with dynamic compaction?
Dynamic compaction is effective for loose granular soils, gravel fills, sand deposits, collapsible loess, and miscellaneous fill. It is less effective for very fine saturated clay without prefabricated vertical drains. A site investigation and trial compaction program is recommended for optimal results.
What construction projects is this machine suitable for?
Yutong dynamic compaction machines are widely used for airport runways, port container yards, industrial plant foundations, highway embankments, reservoir dams, and large-scale land reclamation projects. Any project requiring deep ground improvement can benefit from this technology.
How does the electric/range-extended version compare to diesel?
The range-extended electric dynamic compactor delivers the same compaction energy as the diesel model while reducing fuel consumption by up to 30-40%. It produces lower noise and zero local emissions, making it suitable for urban and environmentally sensitive project locations.
What is the typical productivity rate?
Productivity depends on the required compaction energy and grid spacing. Typical rates range from 500 to 2000 square meters per day per machine. A test section is usually performed first to determine the optimal number of passes and energy level for your site conditions.
Does Yutong provide on-site technical guidance?
Yes, Yutong provides on-site commissioning and technical training for dynamic compaction projects. Our engineers can advise on tamping parameters, grid layout, and quality control methods to ensure optimal ground improvement results.
Does Yutong export to my country?
Yutong Heavy Industries exports construction machinery to over 60 countries across Asia, Africa, the Middle East, South America, and Eastern Europe. We have established dealer and service networks in major markets. Contact us to confirm availability in your region.
