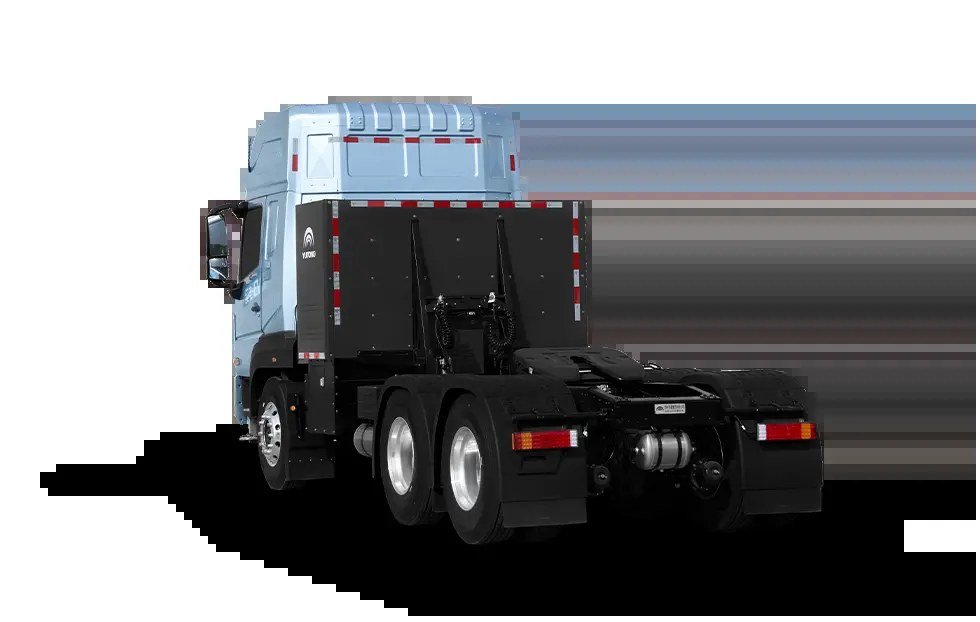

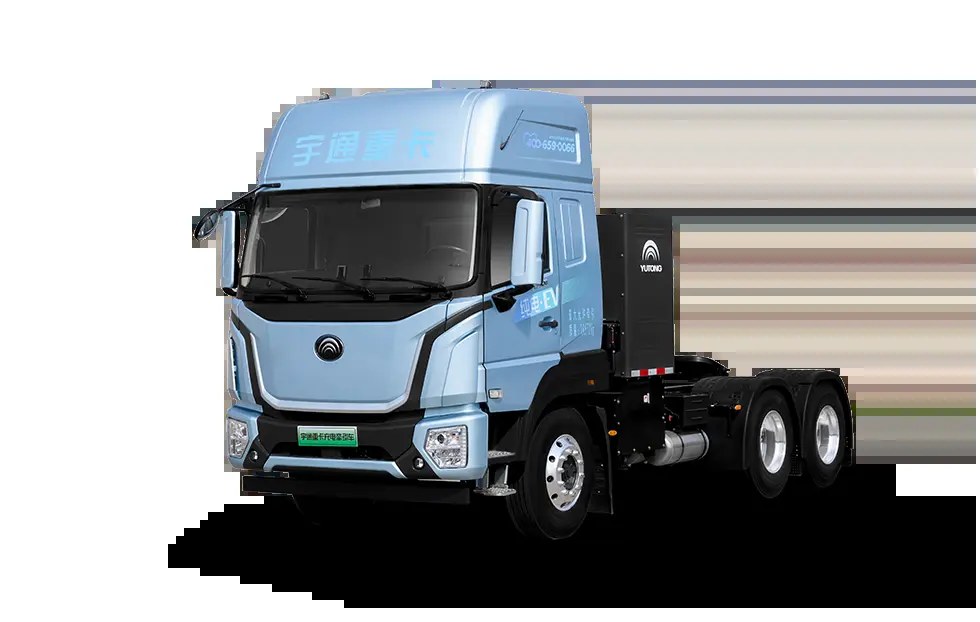

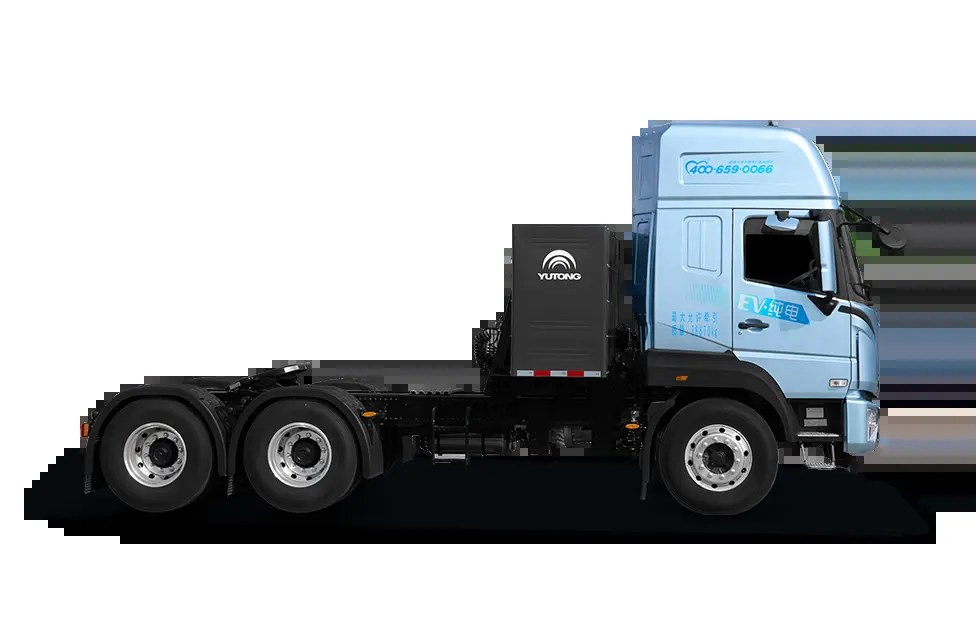

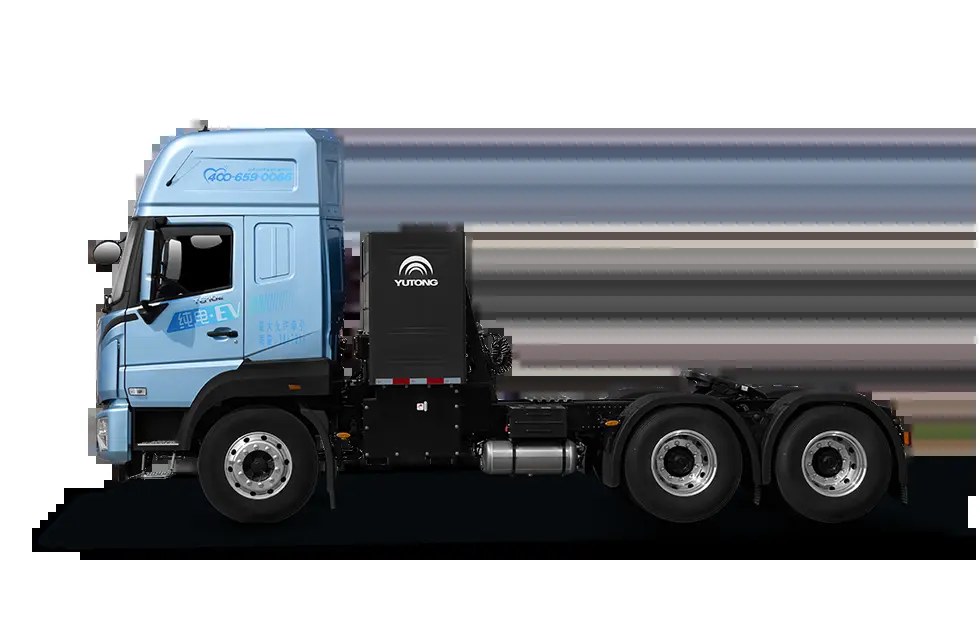

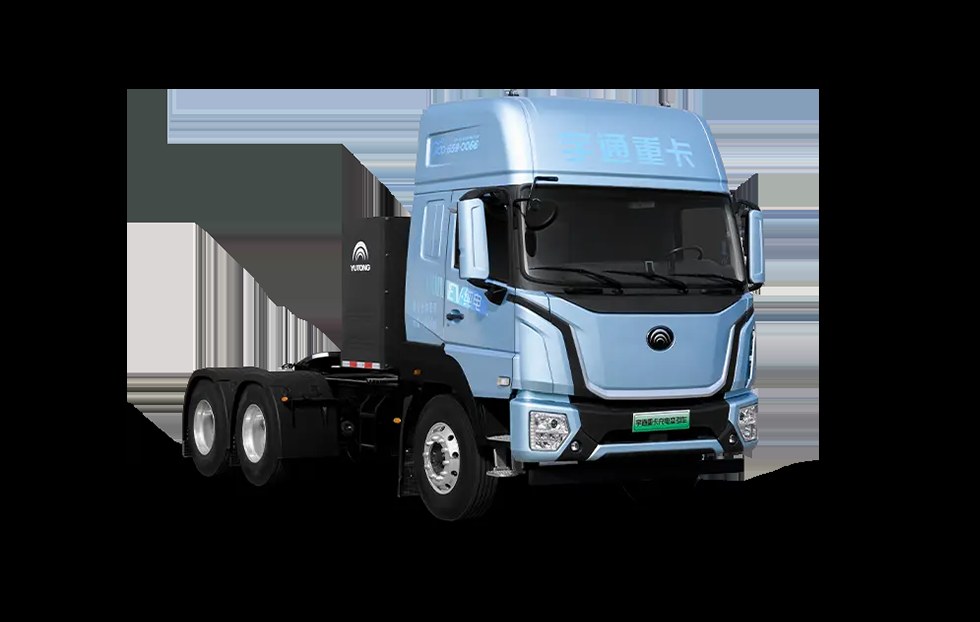

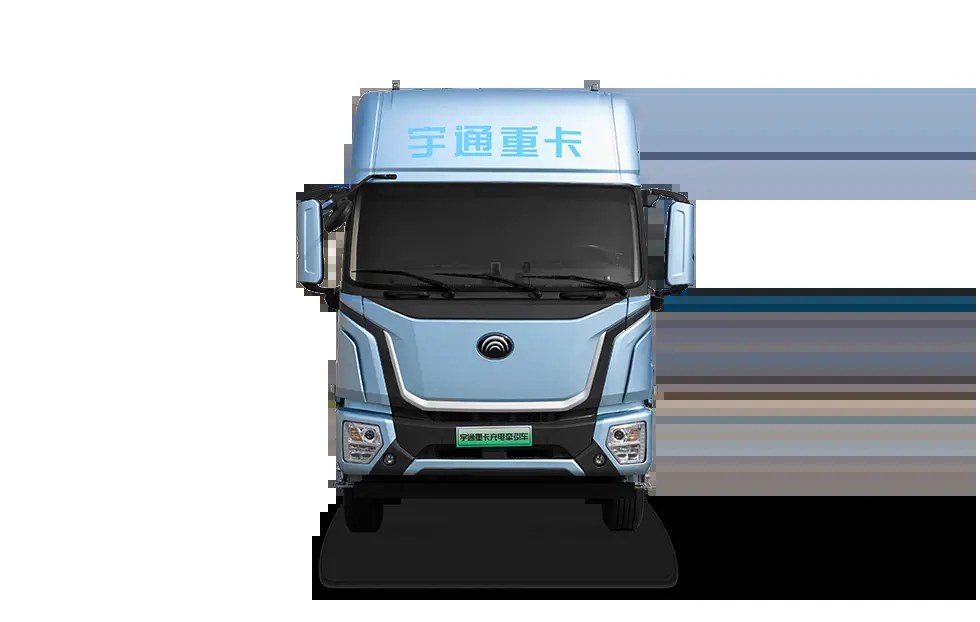

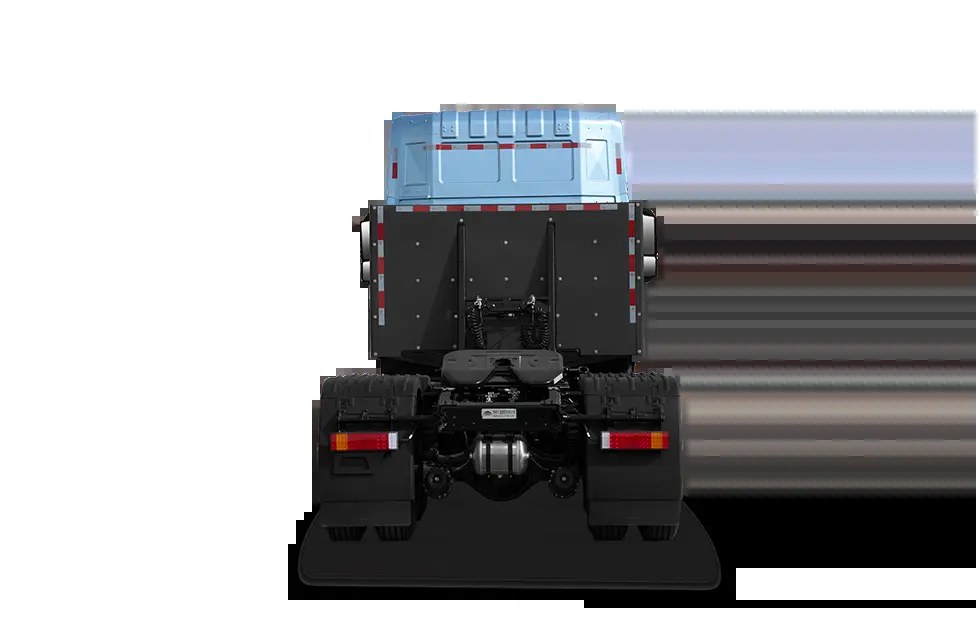

400kWh Roof-mounted Chassis Charging Tractor
400kWh Roof-mounted Chassis Charging Tractor manufactured by Yutong Heavy Industries.
View Details
Product Overview
The 400hbcd is a purpose-built terminal tractor with a 10.2 t curb mass, 400kWhLithium Iron Phosphate (LFP) energy storage and matched power output, configured for yard and depot shuttling where duty cycles are short, frequent and tightly scheduled.
10200
Curb Mass (kg)
400kWhLithium Iron Phosphat…
Battery
7395x2550x3600/3830
Overall Dimensions (LxWxH, mm)
4 +
Gearbox
2 3
Suspension System
12R22.5 18PR
Tyres
About the 400hbcd 400kWh Rear-mounted Charging Tractor
Yutong's 400hbcd pairs 400kW curb mass with 400kWhLithium Iron Phosphate (LFP) energy storage and the matched power output for terminal duty — coupling, shuttling and spotting trailers without the machine leaving its yard cycle.
Coupling hardware, chassis stiffness and cab visibility are set for repeated trailer hook-up, and the driveline is mapped for yard duty cycles. The unit is tested through coupling, braking and range before delivery.
For the 400hbcd, Yutong confirms towing, battery and charging against your terminal plan, then supports the unit with spares, training and field service across export markets.
Performance Feature
400kWhLithium Iron Phosphate (LFP) battery energy storage is matched to a full shift of yard shuttles, with the charge interface aligned to the depot layout.
Curb mass of 10.2 t keeps the axle loads right for terminal bridges and ramps.
Technical Parameters
| Specification | Standard |
|---|---|
| Overall Dimensions (LxWxH, mm) | 7395x2550x3600/3830 |
| Curb Mass (kg) | 10200 |
| Traction Battery | 400kWhLithium Iron Phosphate (LFP) battery |
| Controller | Yutong |
| Energy Refueling | Standard |
| Gearbox | 4 + |
| Suspension System | 2 3 |
| Tyres | 12R22.5 18PR |
| Front Axle | 6.5t |
| Drive Axle | 2x10t |
| Braking System | EBS+ESC |
| Cab | 1.5 |
| Air Fairing | Optional |
| Dashboard | Standard |
| Start Method | Standard |
| Driver Seat | Standard |
| Lights | OptionalLED LED LED |
| Safety | AEBS EPB |
| Warning | Standard |
| Smart Assist | Standard |
| Cruise Control | Standard |
Applications
- Port and terminal container haulage
- Long-haul semi-trailer transport
- Logistics park shunting
- Heavy industrial material towing
