Product Overview

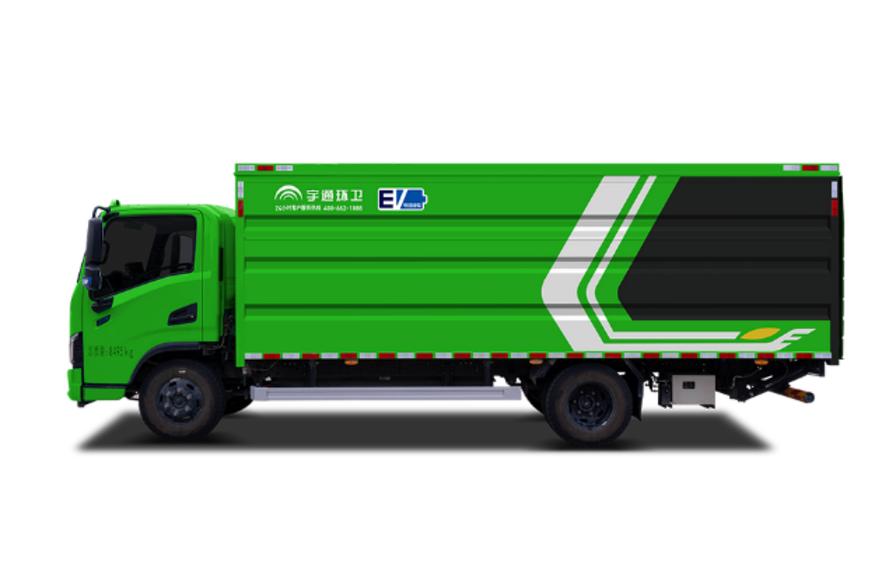

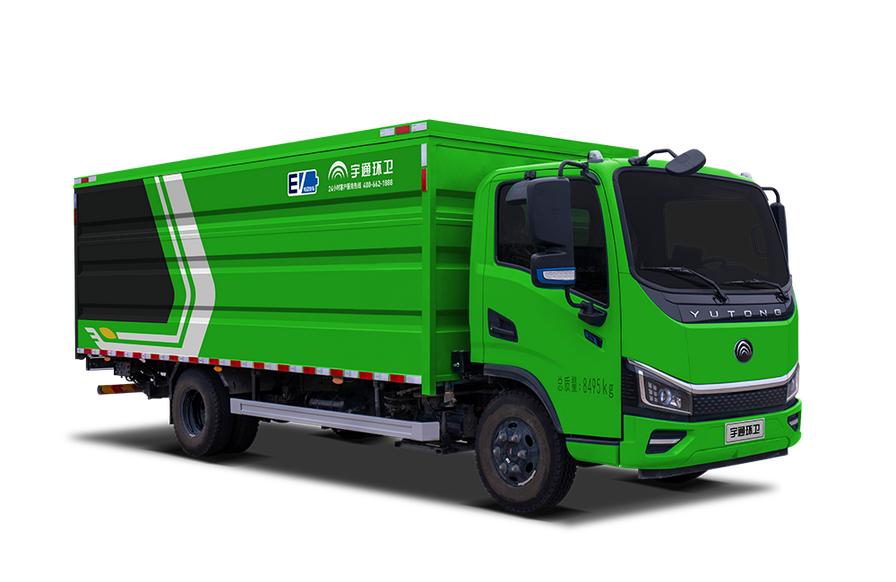

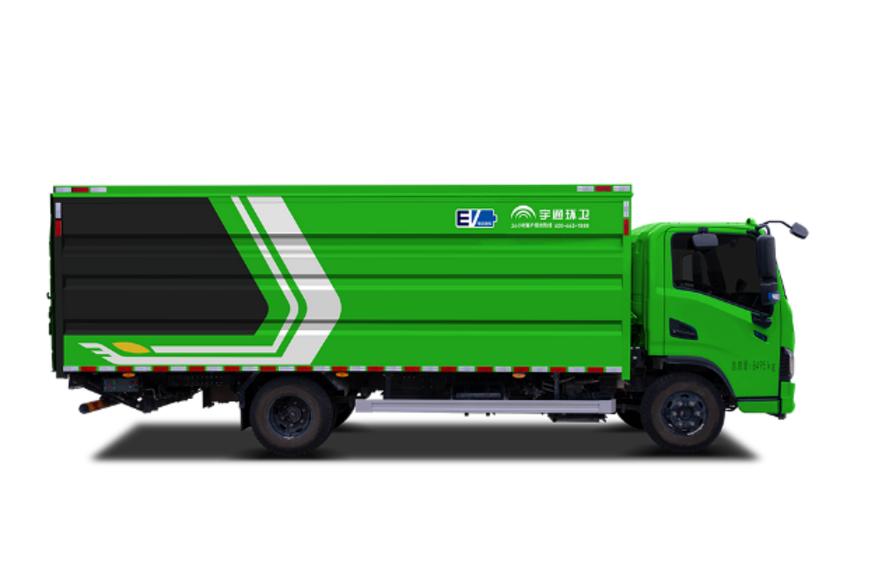

Model: YTZ5080XTYD1BEV | Category: Closed Refuse Bin Transfer Truck
The YTZ5080XTYD1BEV is an 8 t battery electric sealed bin transfer truck. Compact, manoeuvrable and well-sealed, it is purpose-built for collecting bin-sited waste in narrow urban streets, residential communities, parks and railway stations.
8495
Gross Mass (kg)
25/11
240L / 660L Bins
83.72
Battery (kWh)
4150
Rated Load (kg)
About the YTZ5080XTYD1BEV
Bin-sited waste in old residential areas, parks and stations is collected in standard 240 L and 660 L wheelie bins. The YTZ5080XTYD1BEV carries up to 25 of the 240 L bins or 11 of the 660 L bins in its sealed body, loading and unloading them mechanically without the driver lifting by hand.
The enclosed body prevents litter, dust and leachate from spilling during transport, while the 83.72 kWh battery electric driveline keeps collection rounds quiet in residential areas.
Performance Features
Compact and manoeuvrable: 8 t class body suits narrow streets, laneways and underground community access.
Sealed body: prevents litter spillage, dust and odour during transport.
Mechanical bin lifting: handles 240 L and 660 L wheelie bins without manual lifting.
Battery electric driveline: 83.72 kWh pack, quiet for residential collection rounds.
Technical Parameters
| Curb Mass (kg) | 4150 |
|---|---|
| Rated Payload (kg) | 4150 |
| Bin Capacity (240 L / 660 L) | 25 / 11 bins |
| Waste Bin Volume (m³) | 1.93 |
| Max. Gross Mass (kg) | 8495 |
| Battery Capacity (kWh) | 83.72 |
| Chassis Brand | Yutong |
Applications
- Residential community bin collection
- Park and square bin stations
- Railway stations and transport hubs
- Narrow old-town streets and laneways
Related Products
Frequently Asked Questions
How many bins can it carry?
The truck carries up to 25 × 240 L wheelie bins or 11 × 660 L wheelie bins per round.
Is it fully electric?
Yes. The YTZ5080XTYD1BEV is a battery electric vehicle with an 83.72 kWh pack, suited to quiet residential collection.
What are its best applications?
Narrow urban streets, residential communities, parks and station bin stations where larger refuse trucks cannot manoeuvre.
