Product Overview

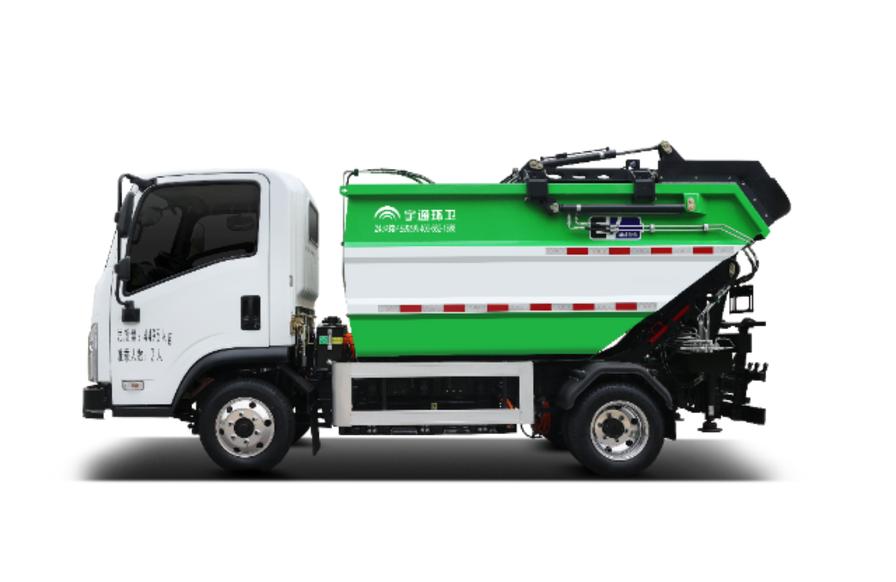

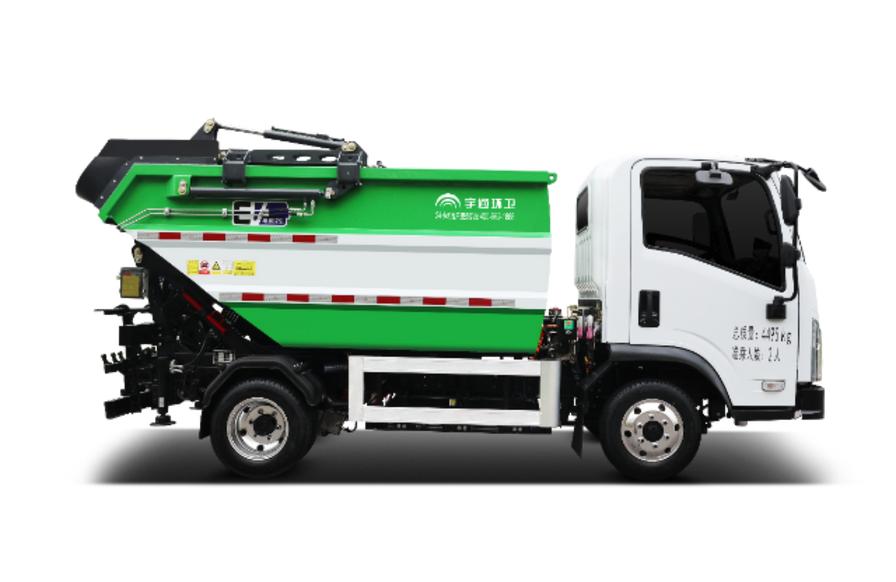

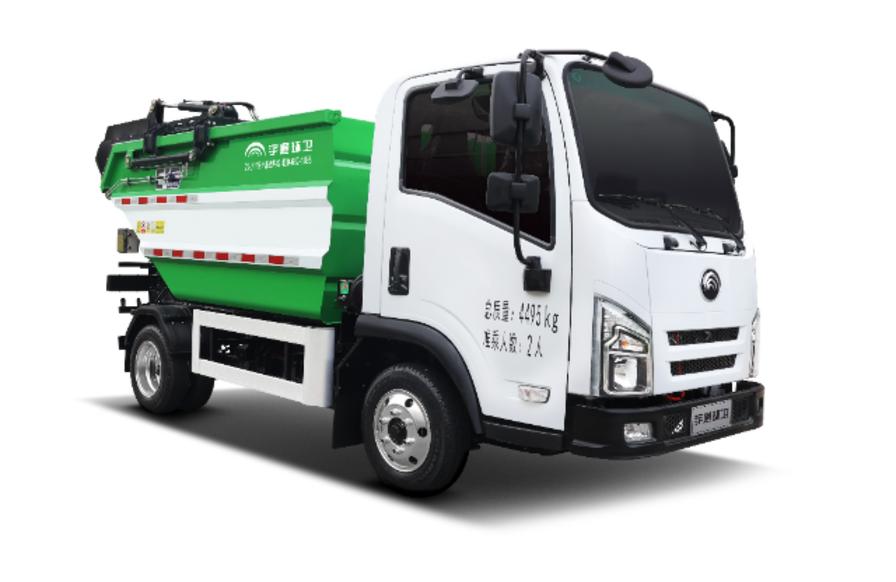

Model: YTZ5047ZZZD2BEV | Category: Self-loading (Side-loader) Garbage Truck
The YTZ5047ZZZD2BEV is a 4 t battery electric self-loading garbage truck. Compact, well-sealed and strong-loading, it is designed for collecting bin-sited waste in narrow urban streets, residential communities, parks and railway stations.
4495
Gross Mass (kg)
4.3
Body Eff. (m³)
53.58
Battery (kWh)
1050
Rated Load (kg)
About the YTZ5047ZZZD2BEV
The self-loading (side-loader) garbage truck lifts standard wheelie bins automatically, empties them into the sealed body and returns the bin to the kerb — all without the driver leaving the cab. The 4.3 m³ effective body holds enough waste for a full collection round in a residential area.
The 4.495 t gross mass and compact dimensions let the truck enter narrow laneways and underground community access where large refuse trucks cannot go. The 53.58 kWh battery electric driveline keeps morning collection rounds quiet in residential areas.
Performance Features
Compact 4 t class body: manoeuvres through narrow streets, communities and station forecourts.
Automated bin lifting: side-loader mechanism lifts and empties standard wheelie bins without manual handling.
Sealed body: prevents litter, dust and odour spillage during transport.
Battery electric driveline: 53.58 kWh pack, quiet for residential morning collection.
Technical Parameters
| Rated Payload (kg) | 1050 |
|---|---|
| Effective Body Volume (m³) | 4.3 |
| Max. Gross Mass (kg) | 4495 |
| Battery Capacity (kWh) | 53.58 |
| Chassis Brand | Yutong |
Applications
- Narrow urban street bin collection
- Residential community waste rounds
- Park and green-space bin stations
- Railway stations and transport hubs
Related Products
4t Battery Electric Sweeper-Scrubber YTZ5045TXSD0BEV
Compact 4 t electric sweeper-scrubber.
View DetailsFrequently Asked Questions
What is the effective body volume?
The effective body volume is 4.3 m³.
Is it fully electric?
Yes. The YTZ5047ZZZD2BEV is a battery electric vehicle with a 53.58 kWh pack.
What size bins does it handle?
The side-loader mechanism handles standard wheelie bins (240 L class) automatically; contact us for your local bin standard.
How do I get a quote?
Use the Inquire Now button or email market@yutonggroup.com for pricing and configuration.
