Product Overview

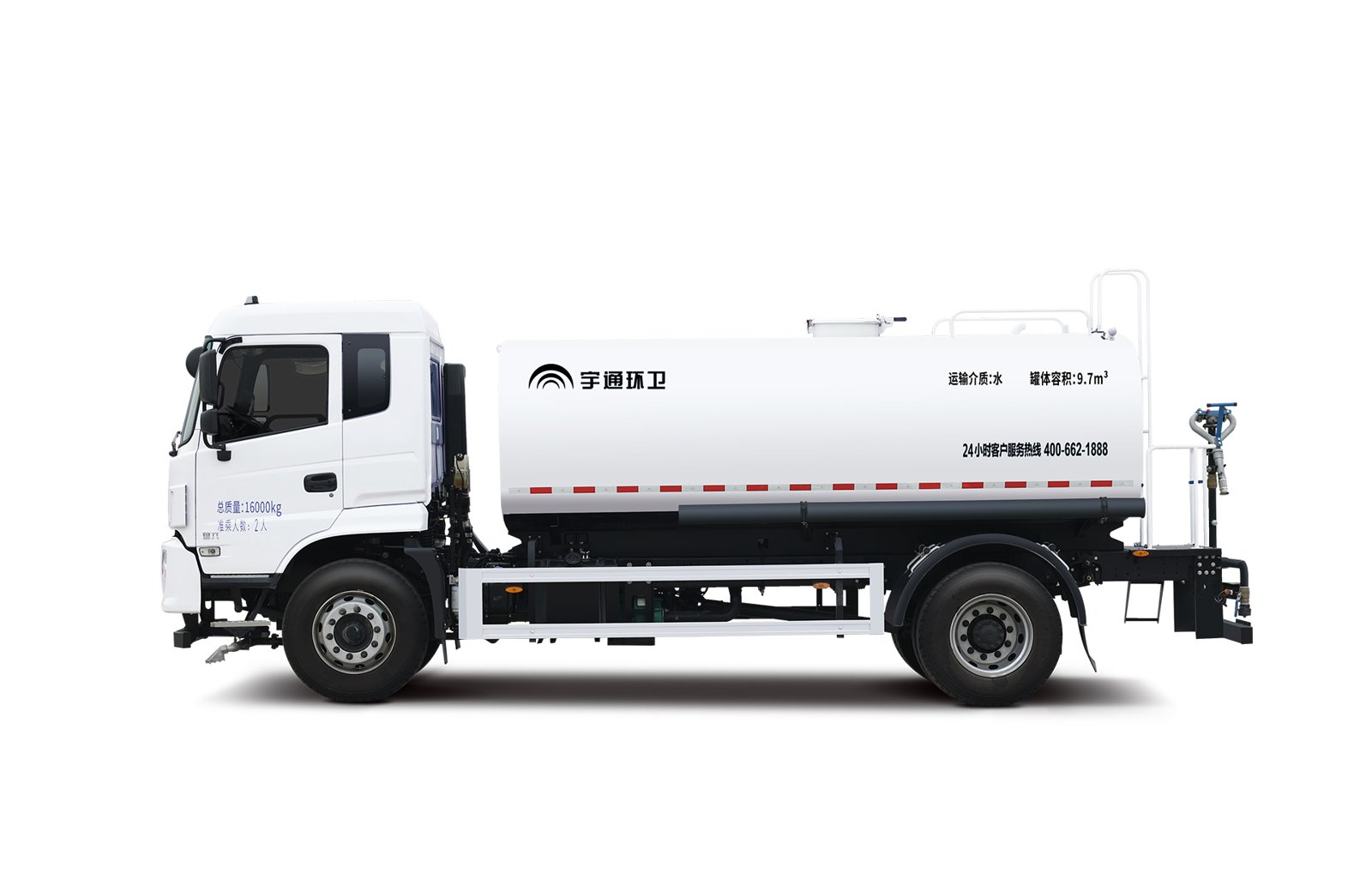

Model: YTZ5160GPST0D6 | Category: Landscaping / Greening Spray Truck
The YTZ5160GPST0D6 is a 16 t greening spray truck in the Value Edition. It performs road flushing, watering and dust suppression, and is widely used for cleaning urban roads, plazas and large depots, as well as for landscaping irrigation and pesticide spraying on municipal green belts.
16000
Gross Mass (kg)
9.8
Tank (m³)
147
Power (kW)
9370
Rated Load (kg)
About the YTZ5160GPST0D6 Landscaping Spray Truck
The greening spray truck is built on Yutong's dedicated sanitation chassis, developed specifically for municipal working conditions. The chassis and the superstructure are designed and manufactured as an integrated system for a high match degree and reliable performance. The frame uses passenger-car-grade electrophoretic anti-corrosion treatment with salt-spray resistance above 720 h, preventing perforation and structural corrosion under normal operation for 6–8 years.
The 9.8 m³ automated-welded tank, industry-brand water pump and large rear platform (ready for mounting optional spray equipment) make the unit a flexible tool for both road cleaning and landscaping duty cycles.
Performance Features
Dedicated sanitation chassis: purpose-built for sanitation duty cycles, with high chassis-to-body integration.
Heavy-duty powertrain: 8-speed gearbox, 4.5 + 9 t axles and multi-mode power switch support demanding operating conditions.
Automated tank welding: uniform welds, advanced anti-corrosion and high-temperature baking finish for a durable tank.
Large rear platform: ready to fit optional spray nozzles, fog cannon or irrigation equipment to extend the truck's use.
Technical Parameters
| Rated Payload (kg) | 9370 |
|---|---|
| Tank Volume, Rated (m³) | 9.8 |
| Max. Gross Mass (kg) | 16000 |
| Engine Power (kW) | 147 |
| Chassis Brand | Yutong |
Applications
- Urban road flushing, watering and dust suppression
- Municipal plazas and large depot cleaning
- Landscaping irrigation on green belts and parks
- Pesticide spraying for municipal vegetation
Related Products
Frequently Asked Questions
What is the difference between this and the standard sprinkler truck?
The YTZ5160GPST0D6 is the Landscaping (greening) Value Edition optimised for irrigation and pesticide spraying on green belts, while sharing the 16 t class chassis with the standard sprinkler.
What tank volume does it carry?
The rated tank volume is 9.8 m³.
Can optional spraying equipment be mounted?
Yes. The large rear platform supports optional irrigation booms, pesticide sprayers or a fog cannon. Tell us your duty cycle and we will propose the configuration.
How do I get a quote?
Use the Inquire Now button or email market@yutonggroup.com for pricing and lead time.
