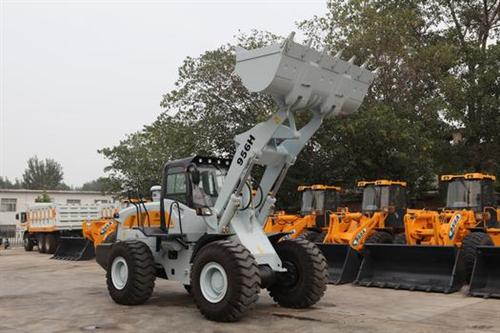

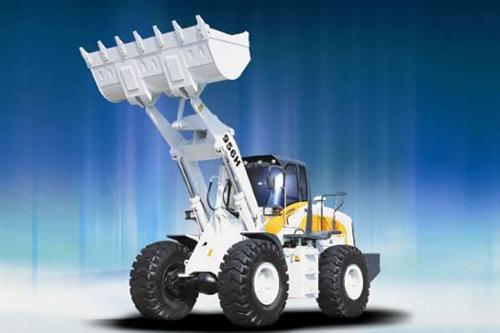

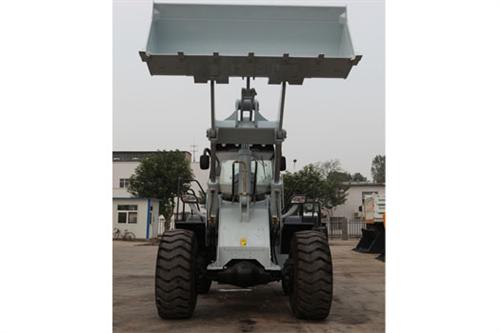

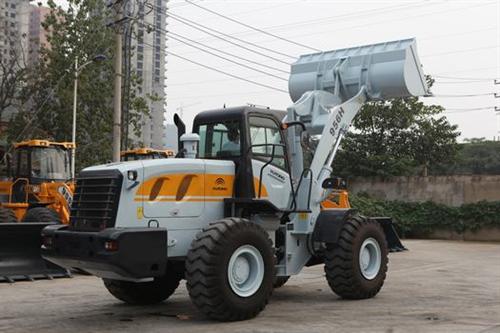

956H Wheel Loader

As a well-known wheel loader supplier in China, we developed different series of wheel loader for sale. Series 956H 5 ton compact wheel loader has high work efficiency with 5.4s for lifting, 10.8s for the sum of lifting, dumping and falling time and 12km/hour speed. Minimum oil consumption



Performance Features

As a well-known wheel loader supplier in China, we developed different series of wheel loader for sale.

1. Efficient Operation

(1) Series 956H 5 ton compact wheel loader has high work efficiency with 5.4s for lifting, 10.8s for the sum of lifting, dumping and falling time and 12km/hour speed.
(2) The design of frame-centered arrangement leads to small turning radius; coaxial flow amplifying steering system, which ensures flexible turning.
(3) Being equipped with 162KW Weichai supercharged engine, the driving force is guaranteed; the compact wheel loader adopts dual-pump-converging technology to maintain enough hydraulic power.

2. Performance Strength

(1) Our series 956H 5 ton compact wheel loader is equipped with mounted boom with the discharge height of 3160mm, which is able to meet the superelevation discharge requirement and improve the working performance.
(2) The wheel loader has powerful strength to fit various severe working conditions, which can be proved by its breakout force of 175kN and traction of 150kN.
(3) Long wheelbase (3,325mm) arrangement, the site suitability and working stability reach the optimized matching condition.

3. High Reliability

(1) The compact wheel loader is designed with integrated front frame, single-beam rear frame and the thickened-plate structure to improve its reliability.
(2) The machine adopts finite element analysis to meet the requirements of high-strength working.
(3) The articulation joint adopts double-row centering cylindrical-roller bearing so that the load carrying becomes more reasonable and the steering gets more flexible.

4. Long Service Life

(1) The wear plate, tooth and bucket have much longer service life.
(2) The articulation joint of pin bearing adopts C-type jacket which has good dust prevention effect and wear resistance.
(3) The hydraulic pipeline adopts"cone-0”double seal according to Germany DIN Standard, which is featured with good sealing property and good performance in leakage control.

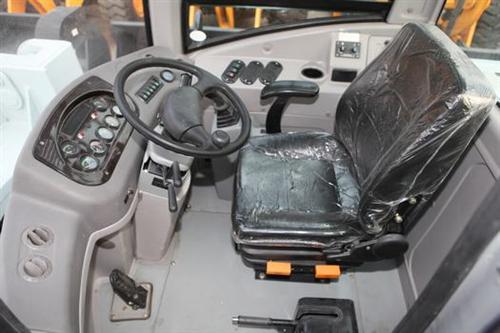

5. More Comfortable During Driving

(1) The compact wheel loader is equipped with cab modeling designed according to patented technology, which is in line with the international aesthetic demands and it is very popular among international users.

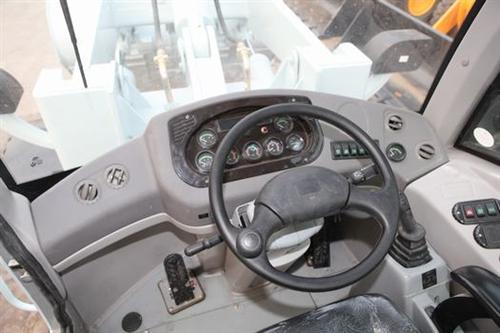

(2) The optimized hand brake and down/up shift make the operation more convenient and humanized.
(3) The heater blower in winter can ensure large discharge quantity of air; it has been designed with defrosting function, which has made the cab more comfortable; air conditioner is optional.

Technical Parameters

Rated load (t) 5
Rated dipper capacity(m3) 2.7
Weight of complete vehicle (kg) 16.4-16.8
Maximum discharge height(mm) 3450
Wheel base (mm) 1070
Sum of lifting, dumping and falling time(s) 10.8
Engine power(kW) 162
Minimum oil consumption(g/kW.h) 208
Break out force (kN) 175
Steering angle(°) 36
Maximum driving speed(km/h) 36
Minimum turning radius 6100
External dimension (L × W × H) (mm) 8430X3000X3370
